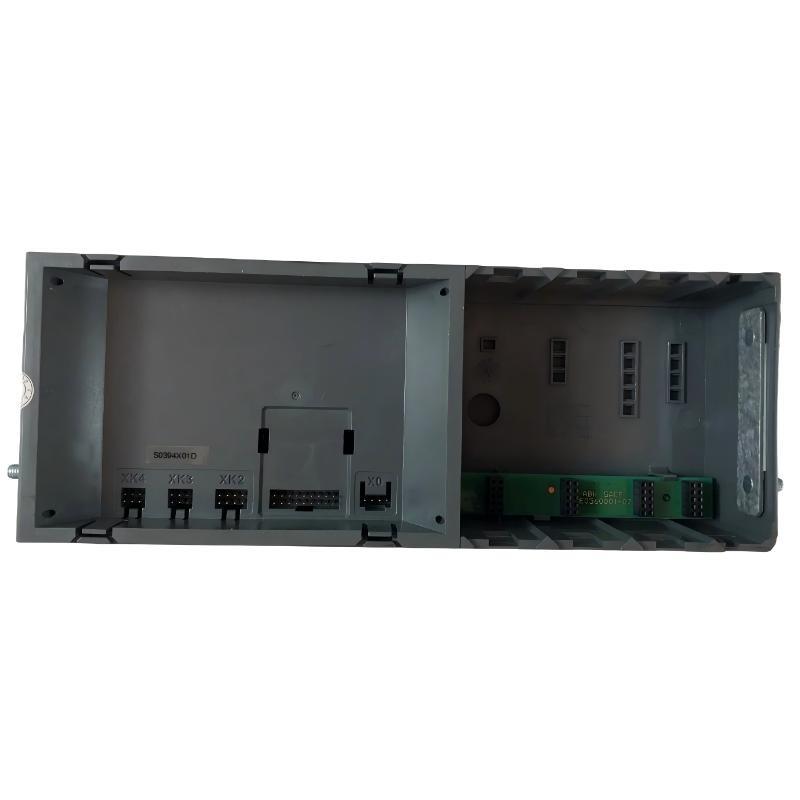

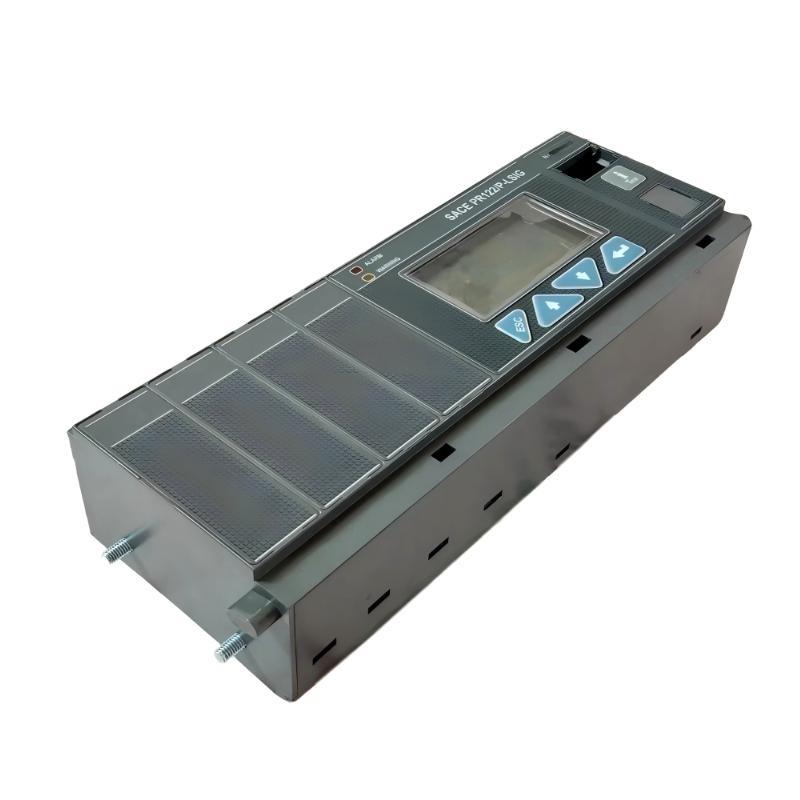

The ABB PR122/P-LSIG E1-E6 1SDA058198R1 Overcurrent Release is a precision-engineered electromechanical protection module designed to safeguard circuit breakers and switchgear against overcurrent conditions. Its primary function is to detect current levels exceeding predefined thresholds and trigger disconnection to prevent equipment damage and ensure operational safety.
This release integrates advanced thermal and electromagnetic mechanisms to provide fast and reliable tripping. It is suitable for use in low- and medium-voltage applications, industrial plants, and process automation systems. Engineered for robust performance, the module ensures repeatable operation under high-stress conditions while maintaining electrical isolation and mechanical durability.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | ABB PR122/P-LSIG E1-E6 |
| Order Number | 1SDA058198R1 |
| Product Type | Overcurrent Release |
| Function | Trip activation for overcurrent protection |
| Current Rating | Configurable according to LSIG curves |
| Tripping Mechanism | Electromechanical, LSIG adjustable |
| Operating Principle | Instantaneous and delayed tripping based on load |
| Environmental Rating | Industrial operational temperature range |
| Mounting | Direct attachment to circuit breaker frame |
| Mechanical Durability | High-reliability design for repeated operation |
| Electrical Isolation | Ensures safe separation from control circuitry |
| Dimensions | 155 × 95 × 70 mm |
| الوزن | 1 kg |
Applications
• Low- and Medium-Voltage Circuit Protection
Safeguards distribution boards and switchgear against overcurrent faults.
• Industrial Plant Electrical Safety
Provides reliable overcurrent tripping in manufacturing and process facilities.
• Automation System Integration
Ensures protective isolation for sensitive automation components.
• Switchgear Retrمنit and Upgrades
Can be applied to upgrade existing switchgear protection systems.
• Power Distribution Networks
Used to protect feeders, busbars, and sub-circuits from overload conditions.
• Emergency Load Isolation
Allows controlled disconnection to prevent cascading failures in the electrical network.
Advantages
• Fast and Reliable Tripping
Instantaneous and time-delayed tripping ensures precise protection under overcurrent conditions.
• Adjustable LSIG Characteristics
الدعمs load-dependent tripping settings, providing flexibility for diverse applications.
• Mechanical and Electrical Robustness
Engineered to withstand repeated operations and maintain isolation integrity.
• Compact Form Factor
Small footprint allows integration into tight switchgear spaces.
• Improved Safety and Maintenance
Reduces risk من equipment damage and facilitates predictable operation during faults.
• Compatibility with ABB Systems
