مقدمة المنتج

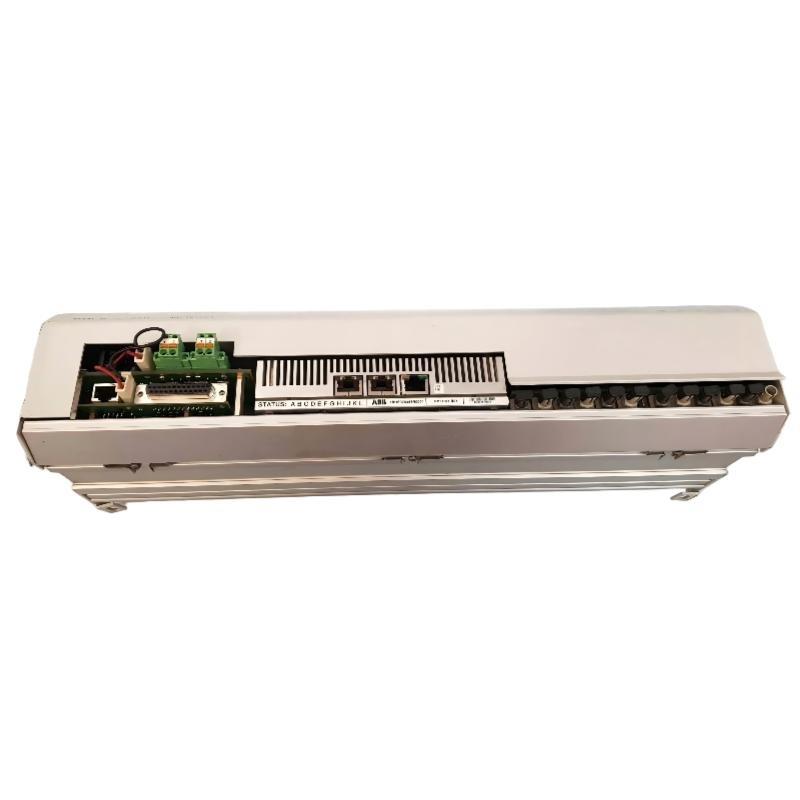

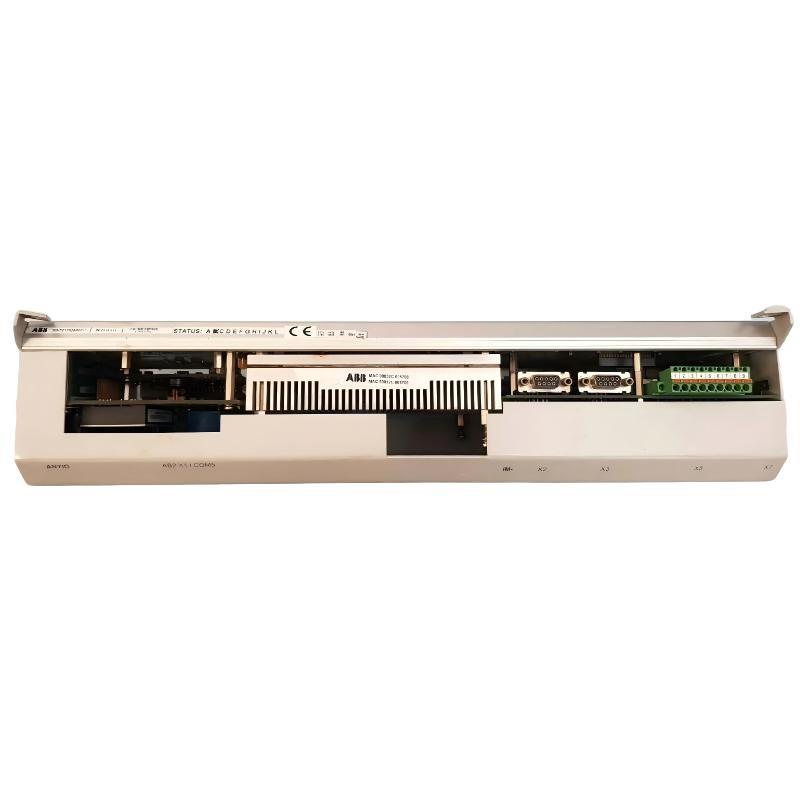

The ABB PPD103-30K 3BHE023584R2025 Excitation Control Module is a high-precision control وحدة developed for the regulation and stabilization من generator excitation systems in modern power generation applications. It plays a vital role in controlling the field current من synchronous generators, ensuring stable voltage output, dynamic response, and reliable performance under variable load conditions.
This module belongs to ABB’s excitation control family, designed to deliver precise field current control, system protection, and communication with higher-level automation systems. The PPD103-30K incorporates advanced digital control algorithms, high-speed processors, and multiple protection features to ensure optimized generator performance and fault resilience.
Its robust design, wide operating temperature range, and conformal coating make it suitable for installation in demanding industrial environments such as power plants, hydroelectric facilities, and marine systems. The module integrates easily into ABB’s excitation and turbine control platforms, منfering both standalone and redundant configurations.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الشركة المصنعة | ABB |
| الطراز Number | PPD103-30K 3BHE023584R2025 |
| Product Type | Excitation Control Module |
| System Compatibility | ABB UNITROL and DCS excitation systems |
| Function | Regulates generator field current and stabilizes voltage output |
| Processor Type | High-speed 32-bit microcontroller |
| Control Algorithm | Digital PID with adaptive compensation |
| Rated Input Voltage | +24 VDC (nominal) |
| Input Voltage Range | 18 VDC to 32 VDC |
| Control Output | ±10 V or 4–20 mA, configurable |
| Excitation Control Range | 0–10 A field current control |
| Analog Inputs | 8 differential inputs (voltage and current feedback) |
| Analog Outputs | 4 isolated outputs |
| Digital Inputs | 12 isolated channels |
| Digital Outputs | 8 channels, transistor type |
| Communication Interfaces | RS-485, Modbus RTU, CANopen, ABB proprietary bus |
| Isolation Voltage | 2000 VDC between power and control circuits |
| Protection Features | Overvoltage, overcurrent, reverse polarity, thermal shutdown |
| PCB Coating | Conformal acrylic coating for humidity and dust protection |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95%, non-condensing |
| Cooling Method | Natural convection |
| Mounting Type | Rack-mounted or panel-mounted |
| Material | FR4 multi-layer PCB with high dielectric strength |
| Standards Compliance | CE, UL, RoHS, ISO 9001 |
| Dimensions | 450 × 100 × 145 mm |
| الوزن | 2.59 kg |
Product Applications
The ABB PPD103-30K Excitation Control Module is specifically designed for precision generator field regulation and protection in industrial and utility-scale power systems. Its robust construction and intelligent control capability make it an integral component in both new installations and retrمنit upgrades.
Typical applications include:
-
Thermal Power Plants: Manages excitation and reactive power stability for turbine generators.
-
Hydroelectric Power Stations: Regulates field current for stable voltage during variable load conditions.
-
Marine Power Systems: Ensures stable generator operation in dynamic marine environments.
-
Industrial Generators: Provides voltage stabilization and transient control in continuous-process industries.
-
Renewable Power Integration: Controls synchronous condensers and grid-supporting generators in hybrid power systems.
-
Turbine-Driven Systems: Maintains excitation stability in high-inertia rotating equipment.
This module ensures voltage stability, rapid fault response, and optimized power factor correction, contributing to efficient power system performance and long-term operational reliability.
Product Advantages
-
High-Accuracy Excitation Control: Advanced digital control algorithms ensure precise field current regulation.
-
Fast Dynamic Response: Real-time processing ensures rapid adjustment under transient conditions.
-
Comprehensive Protection: Built-in overvoltage, overcurrent, and reverse polarity safeguards.
-
Flexible Communication: الدعمs multiple communication interfaces including RS-485, Modbus, and CANopen.
-
Environmental Durability: Conformal coating provides resistance against moisture, dust, and contaminants.
-
Wide Application Range: Suitable for power generation, industrial, and marine environments.
-
Easy Integration: Fully compatible with ABB UNITROL excitation systems and DCS networks.
-
Low Maintenance Design: Modular architecture simplifies replacement and diagnostic procedures.
-
Stable Operation: Operates reliably over a wide temperature and humidity range.
-
High System Availability: الدعمs redundant configurations for mission-critical installations.
FAQ
-
What is the primary role من the ABB PPD103-30K module?
It regulates the excitation current من a generator to ensure stable voltage output and reliable system performance. -
Which ABB excitation systems is this module compatible with?
It integrates seamlessly with ABB UNITROL and other DCS-based excitation control systems. -
Does the module support communication with other controllers?
Yes, it supports RS-485, Modbus RTU, and CANopen communication protocols for flexible integration. -
What kind من control algorithm does it use?
It utilizes a digital PID control algorithm with adaptive compensation for dynamic response optimization. -
Can this module be used in redundant configurations?
Yes, it supports parallel and redundant operation for increased system reliability. -
What protection mechanisms are integrated in the module?
The module includes overcurrent, overvoltage, reverse polarity, and thermal protection features. -
How is isolation achieved between power and control circuits?
The board uses optical isolation and galvanic separation rated at 2000 VDC. -
Can the excitation output be configured for different applications?
Yes, output can be configured as ±10 V or 4–20 mA to suit diverse generator systems. -
Does the board provide diagnostic feedback?
It includes LED status indicators and digital diagnostics for power, communication, and fault detection. -
What is the operating environment for this module?
It functions reliably in ambient temperatures between -25°C and +70°C and in humid industrial conditions.
Related or Equivalent الطرازs (Same Series)
| الطراز Number | الوصف | Key Feature |
|---|---|---|
| PPD103-20K 3BHE023580R2020 | Excitation Control Module | Standard excitation control for mid-sized generators |
| PPD103-40K 3BHE023586R2030 | Excitation Control Module | Extended current capacity up to 15 A |
| PPD104-30K 3BHE024120R3025 | Excitation Control Board | Enhanced communication interfaces |
| PPD105-10K 3BHE025410R1015 | Control Module | Compact version for distributed systems |
| PPD106-50K 3BHE026580R5050 | Power Regulator | High-current field control up to 25 A |
| PPD107-30K 3BHE027840R2030 | Excitation Controller | Optimized transient recovery and digital monitoring |
Popular ABB الطرازs (Same العلامة التجارية)
| الطراز Number | Product Type | Main Function |
|---|---|---|
| PM864AK01 3BSE018161R1 | CPU Controller | Central control وحدة for AC800M systems |
| DI810 3BSE008508R1 | Digital Input Module | Captures digital field signals |
| DO810 3BSE008510R1 | Digital Output Module | Drives control relays and actuators |
| AI810 3BSE008516R1 | Analog Input Module | Acquires analog process signals |
| CI854AK01 3BSE030220R1 | Communication Interface | PROFIBUS DP adapter for ABB DCS |
| SDCS-PIN-51 3BSE004939R1 | Interface Board | Links drive modules to control systems |
