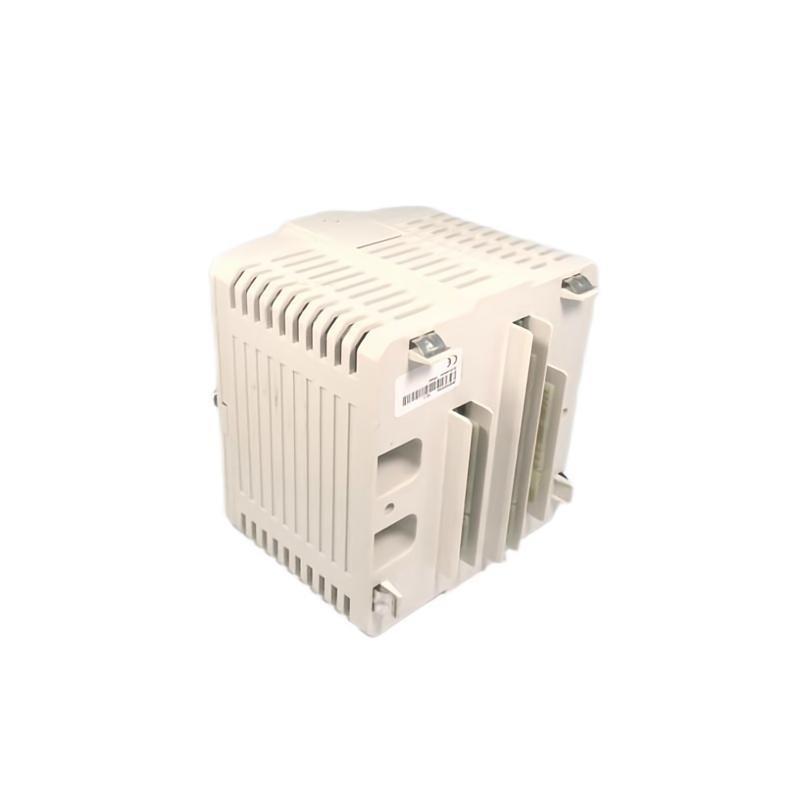

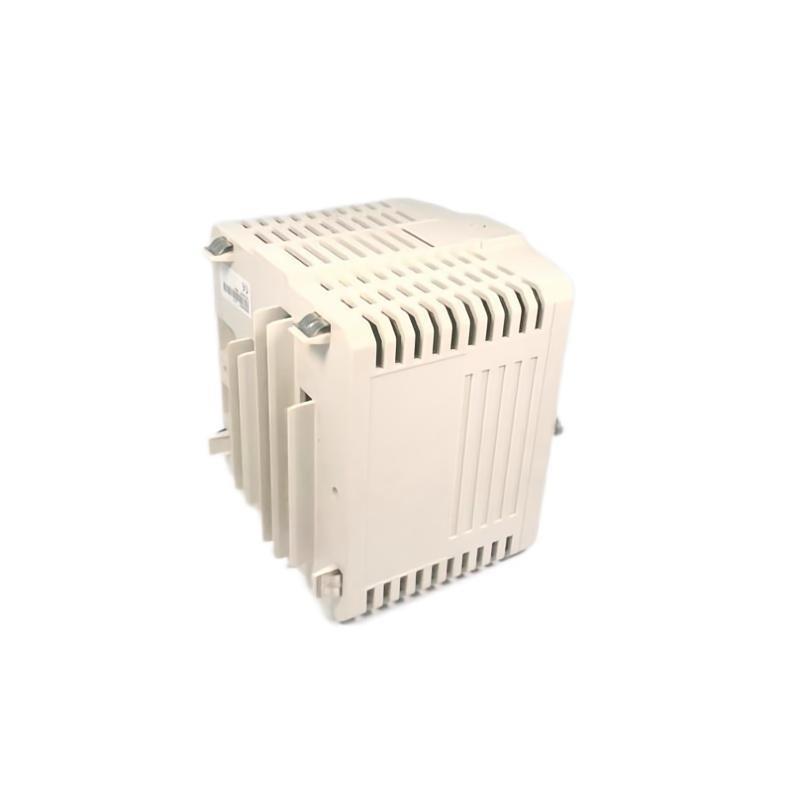

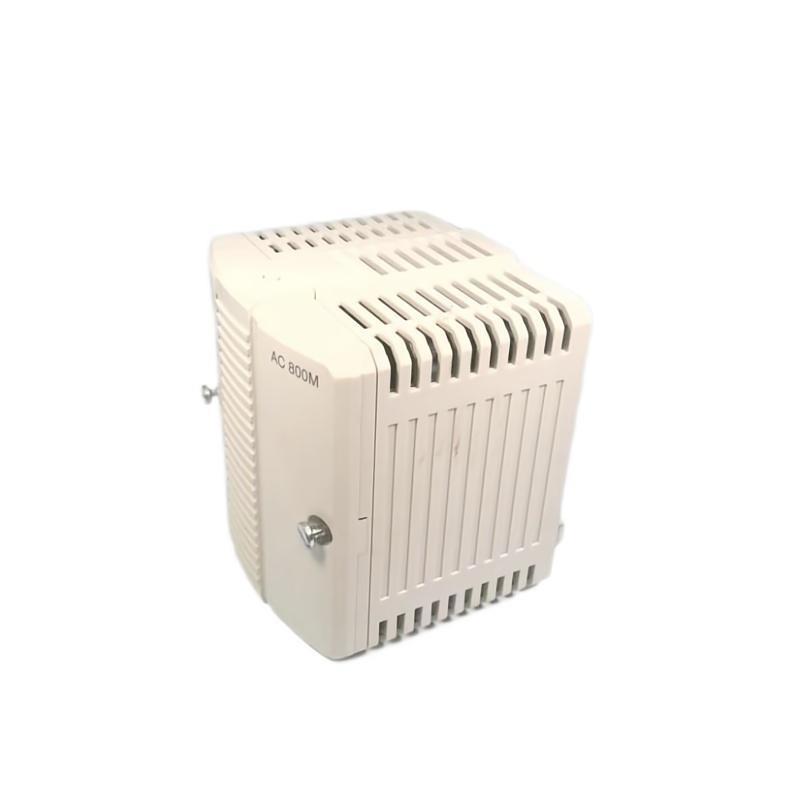

ABB PM866 3BSE050200R1 Controller Module

مقدمة المنتج

The ABB PM866 (3BSE050200R1) is a high-performance controller module designed for ABB’s AC 800M controller family, a cornerstone من the System 800xA automation platform. Engineered for medium to large-scale industrial applications, the PM866 delivers robust control, deterministic real-time performance, and versatile communication capabilities.

This controller features integrated redundancy, extensive memory capacity, and support for multiple fieldbus protocols. It is tailored for applications demanding high availability, safety, and precision. As a core element من process control architecture, the PM866 empowers industries to deploy centralized and distributed automation strategies with long-term scalability.

Technical Specifications

Applications

The ABB PM866 controller is purpose-built for demanding control environments, where precision, fault tolerance, and communication flexibility are crucial. Common applications include:

• Power Generation – Boiler control, turbine automation, generator synchronization.

• Oil & Gas – Compressor management, wellhead control, SCADA integration.

• Water and Wastewater – Process automation for treatment plants, lift stations, flow control.

• Chemical and Petrochemical – Continuous and batch processing, safety interlocks, regulatory control.

• Pulp and Paper – Paper machine automation, drying, tension and feed control.

• Mining and Metals – Material handling, process control for crushers, grinders, smelters.

• Pharmaceuticals and Food – High-integrity process control, batching, cleanroom automation.

Its modular design makes it highly adaptable to both central control rooms and distributed field systems.

Product Advantages

1. Built-in Redundancy
   الدعمs hot-redundant CPU configurations for uninterrupted operation during hardware failure.

2. Multi-Protocol Compatibility
   Interfaces seamlessly with various industrial networks through PROFIBUS, Ethernet/IP, and Modbus TCP.

3. Real-Time Performance
   Ensures deterministic control cycles for critical process applications, minimizing delays and jitter.

4. Expandable and Scalable
   Easily integrates with S800 I/O and various communication interfaces, supporting system growth.

5. Robust Memory Resources
   64 MB من RAM and non-volatile flash storage accommodate large, complex applications.

6. High Environmental Tolerance
   Operates in harsh industrial environments with wide temperature and humidity tolerance.

7. Lifecycle الدعم
   Fully backed by ABB’s lifecycle management policies, ensuring long-term spare part and firmware availability.

8. Integrated Engineering Tools
   Compatible with ABB Control Builder and Plant Explorer for seamless system configuration, diagnostics, and monitoring.

9. Compact Industrial Design
   Offers high performance in a compact DIN-mountable form factor, ideal for space-constrained cabinets.

10. Global Compliance
    Certified for international industrial safety and environmental standards.

الأسئلة الشائعة (FAQ)

1. Q: Is the PM866 capable من redundant operation?
   A: Yes, it supports hot-redundant CPU pairs with full synchronization.

2. Q: What I/O modules can be used with PM866?
   A: It integrates with ABB S800 and S800L I/O systems for flexible and distributed I/O configurations.

3. Q: Which programming environment is used?
   A: ABB Control Builder M, part من the 800xA engineering suite.

4. Q: Can I connect third-party devices?
   A: Yes, using protocols like Modbus TCP, Ethernet/IP, and PROFIBUS via communication modules.

5. Q: Is there an embedded real-time clock?
   A: Yes, it includes a real-time clock for time-stamped logging and operations.

6. Q: What fieldbuses does it support natively?
   A: Ethernet/IP and Modbus TCP are supported natively; PROFIBUS and FF via additional modules.

7. Q: What happens if the CPU fails during operation?
   A: In a redundant setup, the backup CPU takes over without interrupting the process.

8. Q: Is the firmware field-upgradable?
   A: Yes, firmware can be updated via ABB’s Control Builder tools.

9. Q: What’s the typical application memory usage?
   A: It varies by project, but the 64 MB RAM and 16 MB Flash provide sufficient space for large applications.

10. Q: Is it suitable for safety-critical applications?
    A: PM866 can be integrated into safety systems with additional certified modules and configurations.
