ABB PM861 3BSE018129R1 AC 800M Processor وحدة
Product الوصف

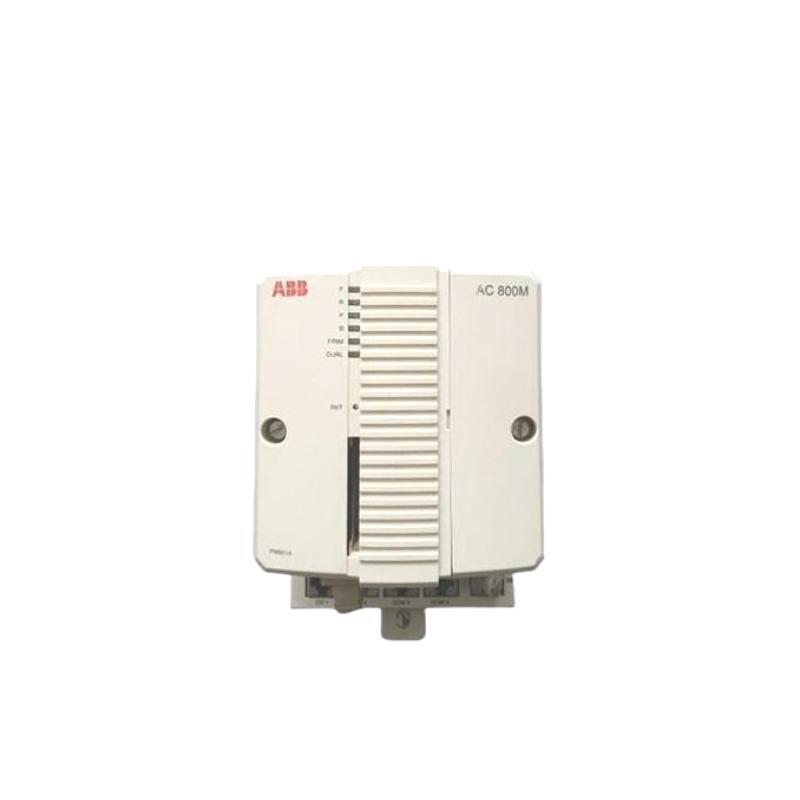

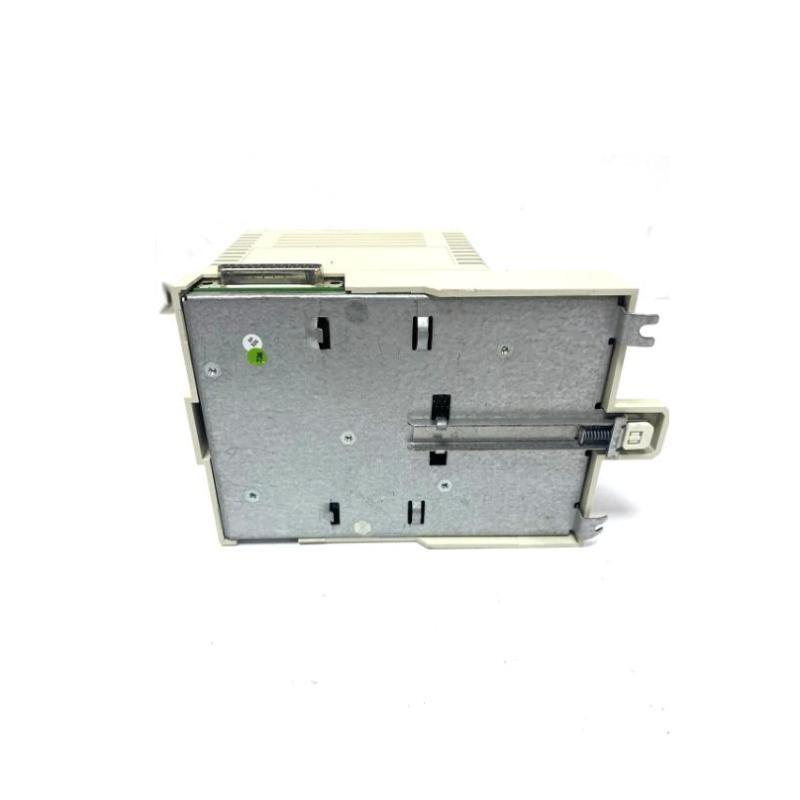

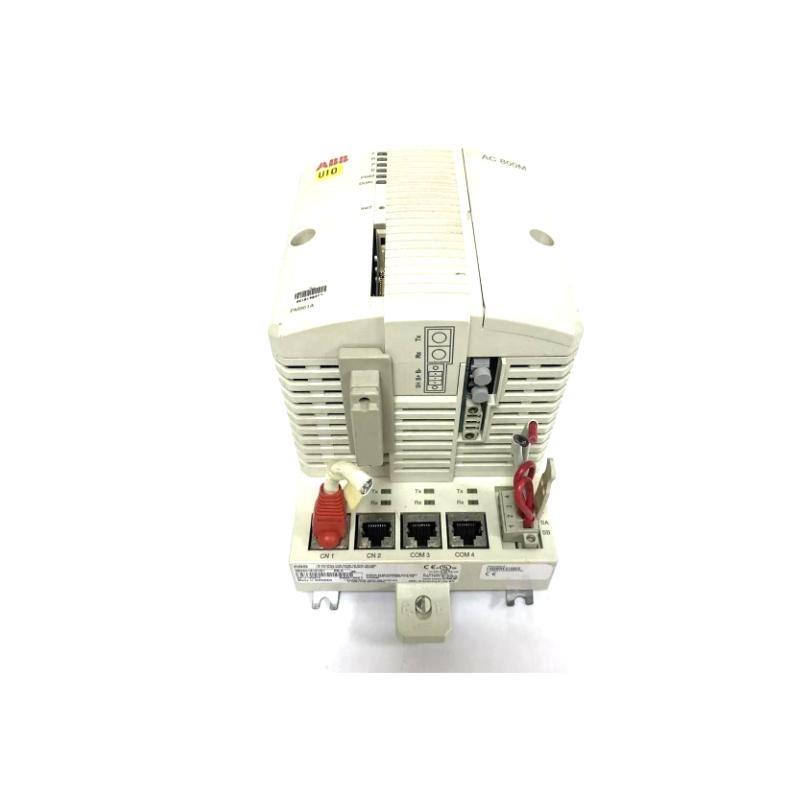

The ABB PM861 (3BSE018129R1) is a high-performance processor وحدة for the AC 800M controller family, part من ABB’s 800xA system architecture. Engineered for demanding process control environments, it features redundancy support, advanced communication capabilities, and a modular structure ideal for scalable industrial automation. This processor integrates seamlessly with the CEX-Bus and optical ModuleBus, supporting a wide variety من field communication interfaces.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | PM861 |
| رقم القطعة | 3BSE018129R1 |
| Processor Type | MPC86x Microprocessor |
| Processor Speed | 133 MHz |
| Memory | RAM with battery backup |
| Communication Ports | 2 x Ethernet (RJ45), 2 x Serial (RS-232C) |
| ModuleBus الدعم | Electrical and Optical |
| CEX-Bus الدعم | Yes |
| Redundancy الدعم | Yes (CPU, CEX-Bus, Communication Interfaces) |
| Backup Battery | Internal & External Options |
| Mounting | DIN rail |
| Protection Class | IP20 |
| Dimensions (W x H x D) | 119 x 186 x 135 mm |
| الوزن | 1.1 kg |
| Power Supply Voltage | 24 V DC |
| Operating Temperature | 0°C to +55°C |
Applications
-
Distributed Control Systems (DCS)
-
Chemical and Petrochemical Plants
-
Power Generation and Distribution
-
Water and Wastewater Treatment
-
Food and Beverage Industry
-
Pulp and Paper Automation
-
Metal and Mining Control Systems
Product Advantages
-
Modular and scalable for system expansion
-
Redundant architecture for high system availability
-
Built-in Ethernet and serial communication ports
-
Compact DIN-rail mounting with IP20 protection
-
Seamless integration with ABB S800 I/O and CEX modules
-
الدعمs wide fieldbus protocols (PROFIBUS, Modbus TCP, etc.)
-
Quick maintenance with hot-swappable وحدةs
الأسئلة الشائعة (FAQ)
Q1: What type من CPU is used in PM861?
A1: The PM861 uses an MPC86x microprocessor running at 133 MHz.
Q2: Does PM861 support redundancy?
A2: Yes, PM861 supports CPU redundancy and CEX-Bus redundancy.
Q3: What kind من I/O connectivity does it support?
A3: It supports both electrical and optical ModuleBus connections.
Q4: Can I connect external batteries for backup?
A4: Yes, PM861 supports both internal and external battery options.
Q5: What fieldbus communication protocols are supported?
A5: It supports protocols such as PROFIBUS DP, Modbus TCP, FOUNDATION Fieldbus, PROFINET IO, and more via CEX modules.
Q6: What is the typical installation method?
A6: It is designed for DIN rail mounting.
Q7: Is it compatible with AC 800M High Integrity applications?
A7: Yes, when used with appropriate safety modules like SM810/SM811.
Q8: Does the وحدة include onboard memory backup?
A8: Yes, it includes battery-backed RAM for application retention.
Q9: Can the وحدة be hot-swapped?
A9: Yes, in redundant configurations, the faulty CPU can be replaced without system shutdown.
Q10: What is the physical size من the PM861?
A10: The dimensions are 119 x 186 x 135 mm, and it weighs 1.1 kg.
Recommended Related الطرازs (Same Series)
| الطراز | رقم القطعة | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|---|
| PM851K01 | 3BSE018168R1 | Entry-level AC 800M CPU | 119 x 186 x 135 | 1.1 kg |
| PM856K01 | 3BSE018173R1 | Enhanced CPU with increased memory | 119 x 186 x 135 | 1.1 kg |
| PM862K01 | 3BSE018761R1 | Mid-range performance CPU | 119 x 186 x 135 | 1.1 kg |
| PM865K02 | 3BSE031151R1 | High-integrity CPU with redundancy | 119 x 186 x 135 | 1.1 kg |
| PM866K02 | 3BSE050199R1 | High-performance redundant CPU | 119 x 186 x 135 | 1.1 kg |
| PM891K01 | 3BSE018290R1 | High-end monolithic CPU | 119 x 186 x 135 | 1.1 kg |
Popular ABB الطرازs (Same العلامة التجارية)
| الطراز | رقم القطعة | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|---|
| CI854AK01 | 3BSE030220R1 | PROFIBUS DP Communication Interface | 45 x 186 x 119 | 0.6 kg |
| CI867K01 | 3BSE043660R1 | Modbus TCP Communication Interface | 45 x 186 x 119 | 0.6 kg |
| CI860K01 | 3BSE032444R1 | FOUNDATION Fieldbus HSE Interface | 45 x 186 x 119 | 0.6 kg |
| BC810K02 | 3BSE031155R1 | CEX-Bus Interconnection وحدة | 45 x 186 x 119 | 0.6 kg |
| TB840A | 3BSE041882R1 | ModuleBus Optical Interface | 45 x 186 x 119 | 0.5 kg |
| SB822 | 3BSE013230R1 | External Rechargeable Battery وحدة | 100 x 120 x 50 | 0.8 kg |
