Product Overview

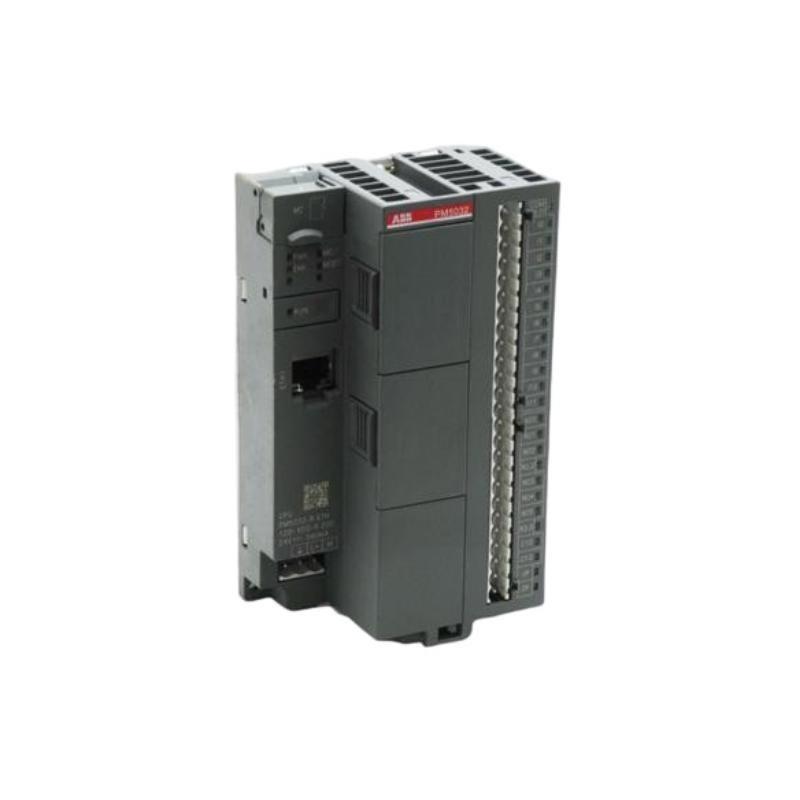

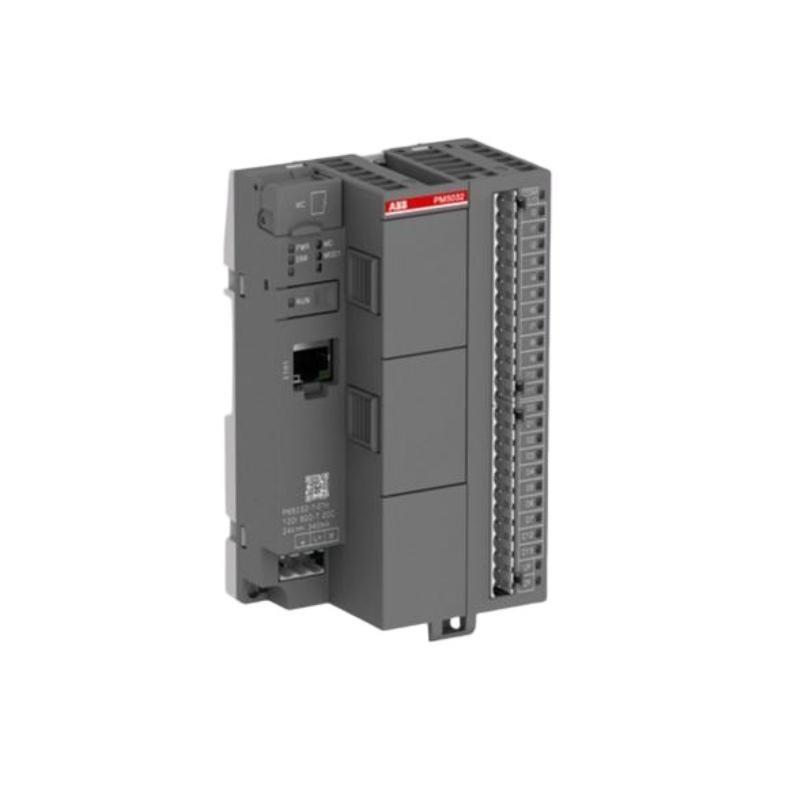

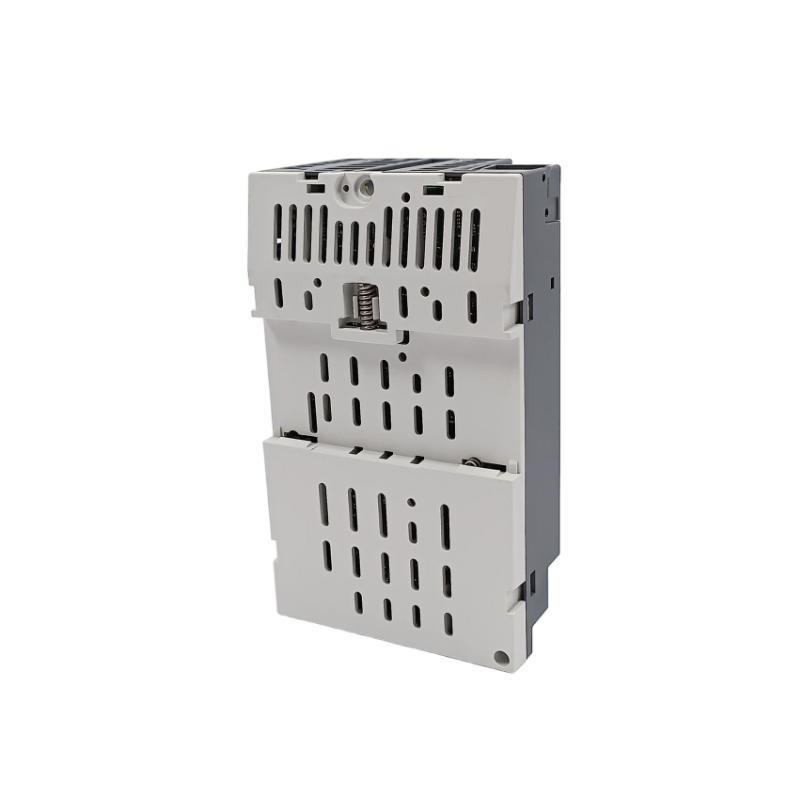

The ABB PM5032-T-ETH (1SAP123400R0072) is a high-performance CPU module from ABB’s AC500-eCo PLC family, specifically designed for compact automation tasks with extended networking capabilities. This وحدة integrates a powerful CPU, digital I/O, and multiple communication interfaces, including Ethernet and serial ports, making it ideal for small to mid-sized control applications in various industries.
Engineered for cost-effective automation, the PM5032-T-ETH features a compact design while delivering the robustness and reliability required in modern control environments. Its programmable capabilities allow it to support standard IEC 61131-3 programming languages, enabling flexible control solutions with fast deployment and scalability.
Key Features
-
Integrated CPU, Ethernet, serial, and digital I/O
-
32 digital inputs/outputs (24 VDC)
-
Compatible with CoDeSys development environment
-
IEC 61131-3 compliant programming (ST, LD, FBD, IL, SFC)
-
Built-in real-time clock (RTC)
-
Web server capability for remote diagnostics
-
USB interface for firmware updates and data transfer
-
DIN rail mounting for easy installation
-
Compact, fanless design for extended system life
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | CPU Programmable Logic Controller |
| الطراز Number | PM5032-T-ETH |
| Order Code | 1SAP123400R0072 |
| Digital Inputs | 16 DI (24 VDC, sink/source configurable) |
| Digital Outputs | 16 DO (24 VDC, transistor) |
| Processor | ARM-based high-performance microcontroller |
| Program Memory | 512 kB |
| Data Memory | 64 kB |
| Ethernet Port | 1 x RJ45 10/100 Mbps |
| Serial Port | 1 x RS-485/RS-232 (configurable) |
| USB Port | 1 x USB for programming and diagnostics |
| Protocol الدعم | Modbus TCP, Modbus RTU, HTTP, SNTP |
| Real-Time Clock | Integrated RTC |
| Power Supply | 24 VDC (19.2–30 VDC range) |
| Dimensions | 74 × 135 × 82 mm |
| الوزن | 0.253 kg |
| Mounting | DIN rail (EN 60715) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5%–95%, non-condensing |
| Protection Class | IP20 (as per IEC 60529) |
| Certifications | CE, UL, cUL, RoHS, EAC, CB |
Industry Applications
The PM5032-T-ETH is suited for a wide range من automation tasks in various industrial domains:
-
Water and Wastewater Treatment – Pump control, filtration, level monitoring
-
Building Automation – HVAC control, lighting systems, access and security control
-
OEM Machine Control – Packaging machines, conveyors, small assembly lines
-
Material Handling – Warehouse automation, lifting systems, sorters
-
Agricultural Automation – Irrigation control, greenhouse systems
-
Renewable Energy – Solar plant control, battery monitoring, and inverter coordination
-
Food and Beverage – Batch processing, temperature control, bottling line control
Product Advantages
-
All-in-One Design: CPU, I/O, and communication interfaces integrated in a single compact وحدة
-
Flexible Networking: الدعمs both Ethernet and serial-based communication protocols
-
User-Friendly Programming: Fully programmable via CoDeSys in IEC-compliant languages
-
Industrial-Grade Build: Engineered for 24/7 operation in challenging industrial settings
-
Scalability: Ideal for small systems but expandable via ABB S500 I/O modules
-
Low Power Consumption: Energy-efficient CPU and solid-state design reduce system load
-
Remote Access: Embedded web server and diagnostics enable remote monitoring and maintenance
-
Minimal Footprint: Compact dimensions help save panel space and reduce wiring complexity
الأسئلة الشائعة (FAQ)
-
Q: Is the PM5032-T-ETH programmable using CoDeSys?
A: Yes, it fully supports CoDeSys with IEC 61131-3 programming languages. -
Q: What communication protocols are available?
A: It supports Modbus TCP, Modbus RTU, HTTP, and SNTP via Ethernet and serial ports. -
Q: How many I/Os does the وحدة have?
A: It features 16 digital inputs and 16 digital outputs onboard. -
Q: Can this PLC be expanded with additional I/O modules?
A: Yes, it supports expansion via ABB’s S500 series I/O modules. -
Q: Is the RTC battery-backed?
A: Yes, it includes a real-time clock with backup for timekeeping during power loss. -
Q: What is the operating voltage range?
A: The وحدة operates at 24 VDC nominal, with a range من 19.2–30 VDC. -
Q: Is there a built-in web server?
A: Yes, it includes a web server for remote diagnostics and monitoring. -
Q: Does it support firmware updates via USB?
A: Yes, firmware updates and data transfer are supported through the USB port. -
Q: Can the PM5032-T-ETH be DIN-rail mounted?
A: Absolutely, it’s designed for quick DIN rail installation. -
Q: Is it suitable for outdoor use?
A: It must be housed in a suitable enclosure, as the وحدة itself is IP20 rated.
