Product Overview

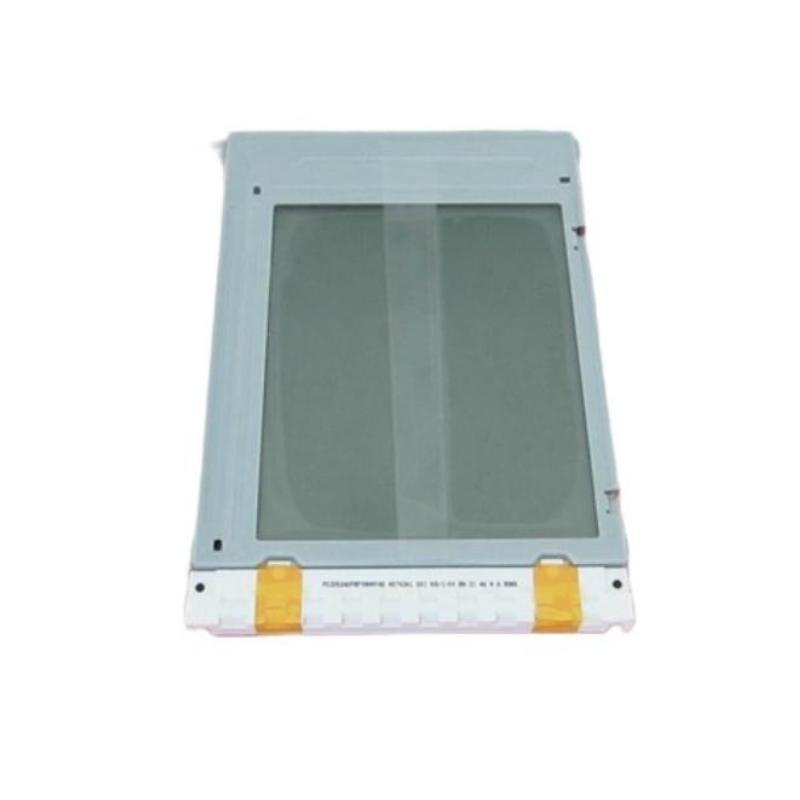

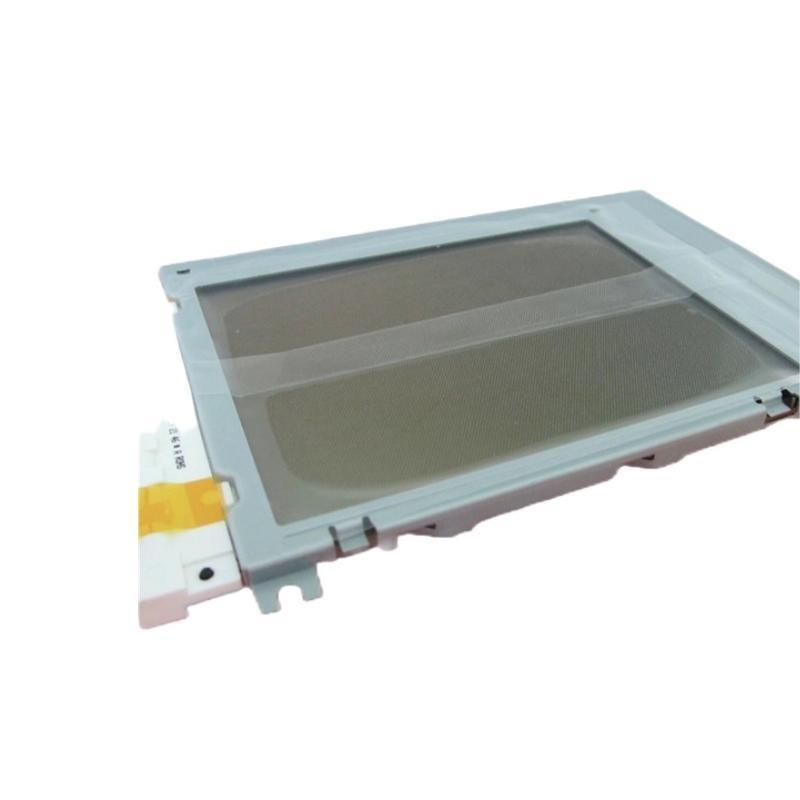

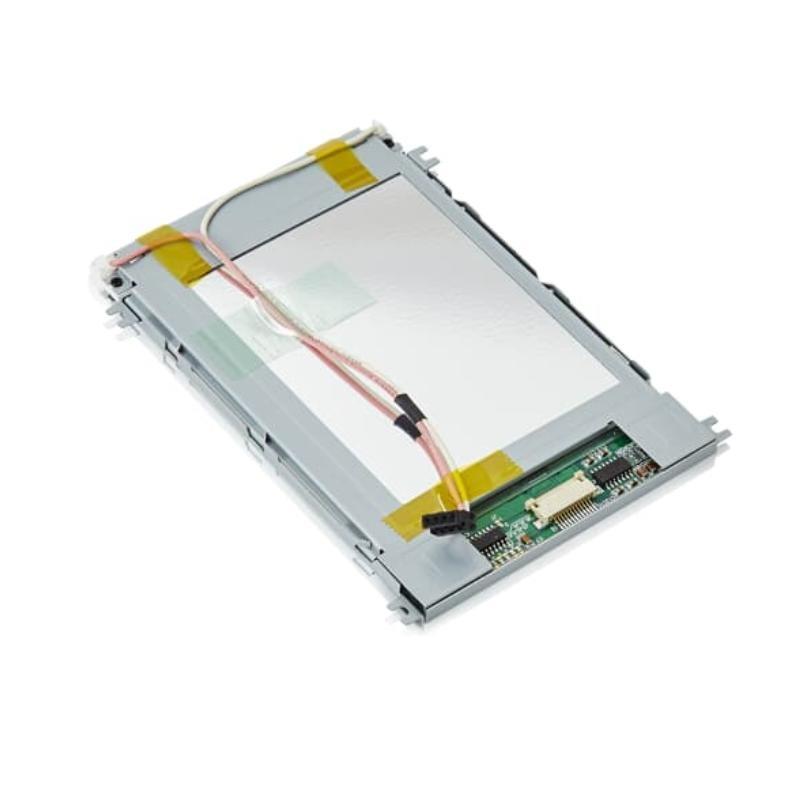

The ABB PG320240FRF YNNHY4Q 3HNP04014-1 is a high-performance monochrome LCD display panel designed for use in ABB’s automation and control systems. Built for durability and reliability, this industrial-grade display panel ensures crisp, high-contrast visuals even in harsh operating environments. It is commonly integrated into control terminals, HMIs, and diagnostic interfaces within process automation, robotics, and discrete manufacturing systems.
With a display resolution من 320×240 pixels and a robust construction capable من withstanding vibration and thermal variations, this module serves as a key interface component in both new equipment and legacy ABB system maintenance.
Key Features
-
320×240 pixel monochrome LCD resolution
-
High-brightness display for clear readability
-
Robust construction for industrial environments
-
Compact and lightweight for easy integration
-
Long operational life with stable backlight performance
-
ممتاز visibility under various lighting conditions
-
Compatible with ABB HMI and control panels
-
Wide viewing angle for better operator readability
-
Simple connection interface for plug-and-play use
-
Vibration and shock-resistant for factory use
Technical Specifications
| Item | Specification |
|---|---|
| الطراز Number | PG320240FRF YNNHY4Q / 3HNP04014-1 |
| Display Type | Monochrome LCD Panel |
| Resolution | 320 x 240 pixels (QVGA) |
| Display Area | 115.2 mm × 86.4 mm |
| Viewing Area | Approx. 120 mm × 90 mm |
| Contrast Ratio | ≥ 80:1 |
| Brightness | ≥ 200 cd/m² |
| Viewing Angle | Horizontal: ±50°, Vertical: ±40° |
| Backlight Type | LED (long-life) |
| Backlight Lifetime | ≥ 50,000 hours |
| Interface Type | Parallel interface |
| Power Supply Voltage | 5 V DC |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Shock Resistance | 50G peak (11 ms) |
| Vibration Resistance | 10–500 Hz, 2G |
| Dimensions) | 75 × 56 × 4.5mm |
| الوزن | 0.2 kg |
| Mounting Type | Panel Mount / Bezel Integrated |
| Compliance | RoHS, CE |
Industry Applications
-
Process Automation Systems: Visual interface for process status monitoring
-
Industrial HMIs: Integrated into operator panels for machine interaction
-
Factory Automation: Real-time display من sensor data and alerts
-
Robotics Interfaces: Used in robot controllers for diagnostics
-
CNC Equipment: Screen for settings, alarms, and user input
-
Power Management Systems: Status display in power distribution وحدةs
-
Packaging Lines: Monitor cycle counters and production metrics
-
Legacy ABB System Maintenance: Replacement module for older ABB HMIs
Product Advantages
-
Clarity in Harsh Environments: High brightness and contrast ensure readability in factory conditions
-
Compact Form Factor: Easy to fit into tight enclosures or retrمنit projects
-
Reliable and Durable: Built to withstand vibration, shock, and extended use
-
ABB-Compatible: Direct replacement for specific ABB modules and HMIs
-
Low Power Consumption: Efficient LED backlight conserves energy
-
Wide Operating Range: Functions reliably across a broad temperature range
-
User-Friendly Interface: Simple electrical interface for fast integration
-
Minimal Maintenance: Long-life backlight and rugged housing reduce failure points
-
Multi-Angle Viewing: Optimal for operators working at different positions
-
الدعمs Long-Term Use: Designed for consistent performance in continuous operations
الأسئلة الشائعة (FAQ)
-
What is the resolution من the PG320240FRF YNNHY4Q display panel?
It منfers a 320 x 240 pixel QVGA resolution. -
Is this LCD panel backlit?
Yes, it features a high-efficiency LED backlight. -
Can this panel be used in high-temperature environments?
Yes, it operates reliably between -20°C and +70°C. -
Is it suitable for use with ABB HMI panels?
Yes, it is specifically designed to integrate with ABB HMI/control systems. -
What is the expected backlight life?
The LED backlight has a typical life من over 50,000 hours. -
Does it support touch input?
No, this model is a display-only وحدة and does not include a touch interface. -
What type من interface does it use?
It uses a parallel data interface for signal communication. -
Can it be used in robotics control systems?
Yes, it is منten used in ABB robotic controller panels. -
How is the module mounted?
It is designed for panel mounting or integration into enclosures. -
Is this a color display?
No, it is a monochrome display.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| PG320240FRF YNNHY4Q-1 | Variant with extended viewing angle |
| PG320240WRF | Wide temperature range LCD version |
| 3HNP04014-2 | Display panel with extended contrast ratio |
| 3BSE008516R1 | ABB CP502 LCD Operator Panel |
| 3HNE00313-1 | Compact display module for ABB robot controller |
| DSQC679 Display | Used in ABB IRC5 robot systems |
Popular ABB الطرازs
