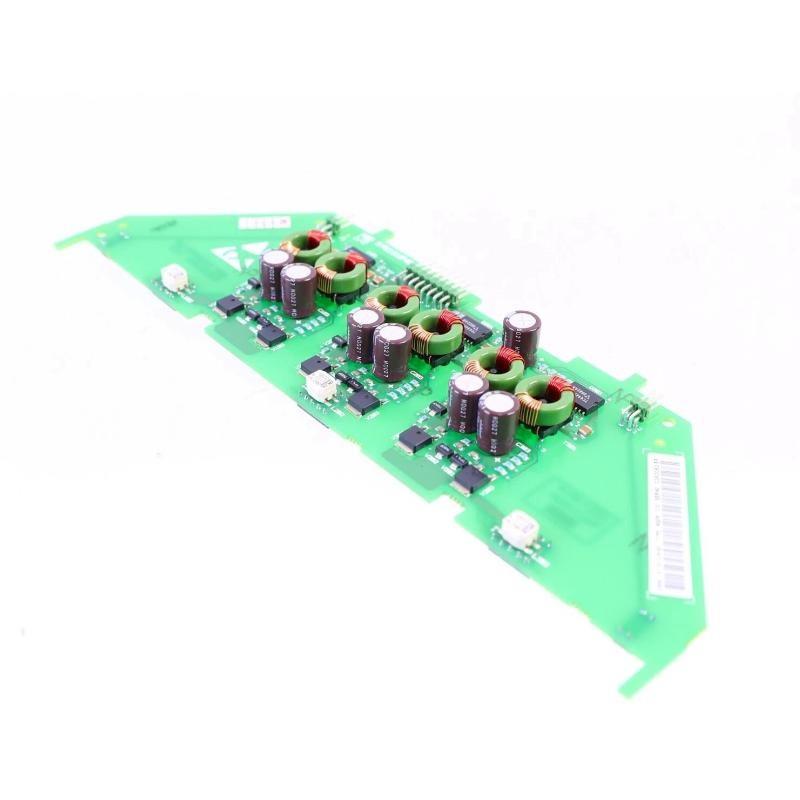

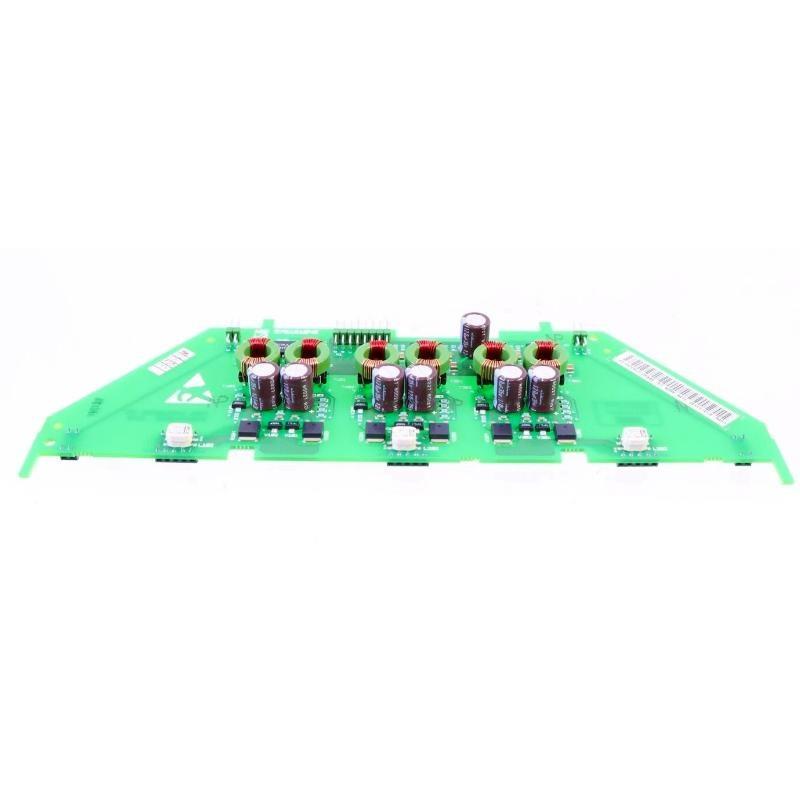

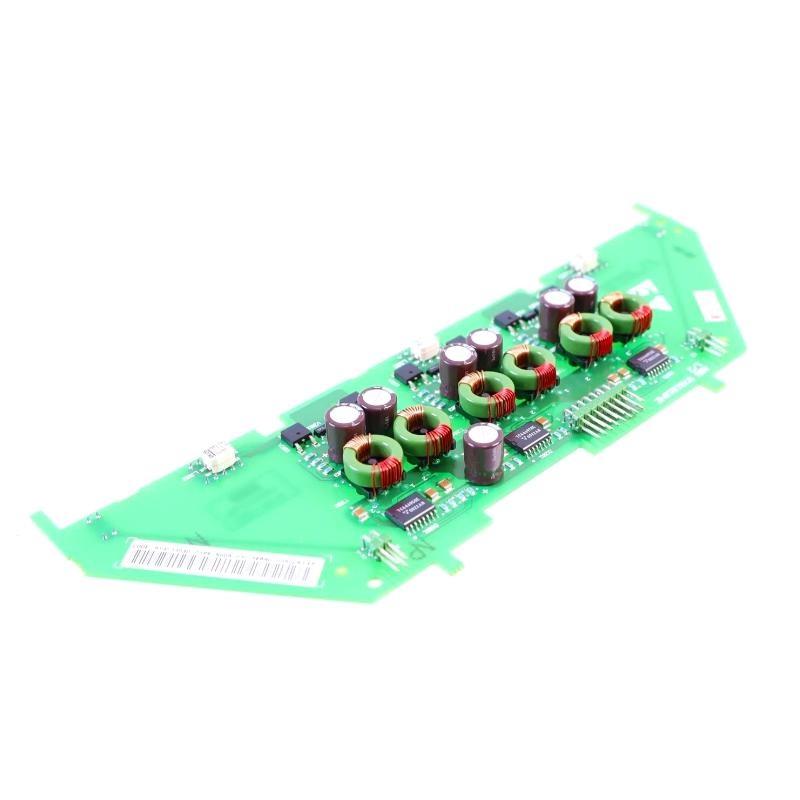

ABB NGDR-03C 61353364D Gate Circuit Board

مقدمة المنتج

The ABB NGDR-03C Gate Circuit Board (رقم القطعة: 61353364D) is an essential component within ABB’s modular drive systems, designed to manage the gate signals for IGBT power devices in the inverter section. This circuit board plays a crucial role in controlling the switching من power transistors, ensuring efficient, precise, and safe operation من high-power electric drives such as those in the ACS800 and DCS800 series.

Engineered with advanced gate drive technology, the NGDR-03C provides high-speed pulse width modulation (PWM) control and incorporates protective measures to prevent faults such as shoot-through and overcurrent conditions. Its rugged design ensures reliable operation in demanding industrial environments, helping maintain optimal performance, reduce downtime, and extend system lifespan.

This gate circuit board supports ABB’s commitment to robust and flexible drive solutions, providing users with confidence in power electronic control for applications across various heavy industries.

Technical Specifications

Applications

The NGDR-03C gate circuit board is utilized in a variety من industrial sectors requiring precise and reliable inverter control, including:

• Steel and Metal Manufacturing: Rolling mills, presses, and cutting equipment that demand precise motor control under heavy loads.

• Pulp and Paper Industry: Variable speed drives for processing and material handling.

• Marine Industry: Electric propulsion drives and dynamic positioning systems.

• Renewable Energy: Wind turbine power converters and solar inverter control.

• Mining and Material Handling: Control من conveyors, crushers, hoists, and pumps.

• Oil and Gas: Drives for pumps, compressors, and drilling machinery operating in challenging environments.

Advantages

• High-Precision Gate Signal Control: Ensures accurate switching من IGBTs, leading to improved inverter performance.

• Integrated Protection: Protects the inverter from shoot-through, overcurrent, and thermal faults, enhancing system reliability.

• Modular and Compact Design: Enables easy installation and replacement, minimizing downtime.

• Industrial-Grade Durability: Designed to withstand harsh environmental conditions, including temperature extremes and electrical noise.

• Visual Fault Diagnostics: Onboard LEDs allow quick identification من faults and operational status.

• Wide Compatibility: Fully compatible with ABB ACS800 and DCS800 drive series.

• Reduced Electromagnetic Interference: Advanced gate drive circuits reduce noise emissions.

• Improved Energy Efficiency: Optimized switching reduces power losses and enhances overall drive efficiency.

• Long Service Life: Robust design and quality components ensure extended operational life.

الأسئلة الشائعة (FAQs)

1. What is the primary function من the NGDR-03C Gate Circuit Board?
It generates and controls the gate signals for IGBT transistors in the inverter, managing switching and protection.

2. Which ABB drive series is this board compatible with?
It is designed for use with the ABB ACS800 and DCS800 drive families.

3. What protections does the board include?
The board has built-in safeguards against shoot-through, overcurrent, and thermal overload conditions.

4. How is the board powered?
It operates on a 24V DC supply provided internally from the drive’s control system.

5. Can this board be installed while the drive is energized?
No, installation or removal must be performed with the drive powered down to avoid damage.

6. How can faults be identified on this board?
LED indicators on the board provide visual signals for operational status and faults.

7. Is the NGDR-03C suitable for harsh industrial environments?
Yes, it is designed to withstand temperature extremes, humidity, and electrical noise common in industrial settings.

8. Can the board support synchronized multi-drive systems?
Yes, when integrated properly, it supports coordinated inverter control for multi-drive configurations.

9. What maintenance does this board require?
Routine inspection and diagnostics are recommended; faulty boards should be replaced promptly.

10. What happens if the board fails during operation?
The drive may enter a fault state, stopping motor operation to prevent damage; diagnostics help isolate the issue.
