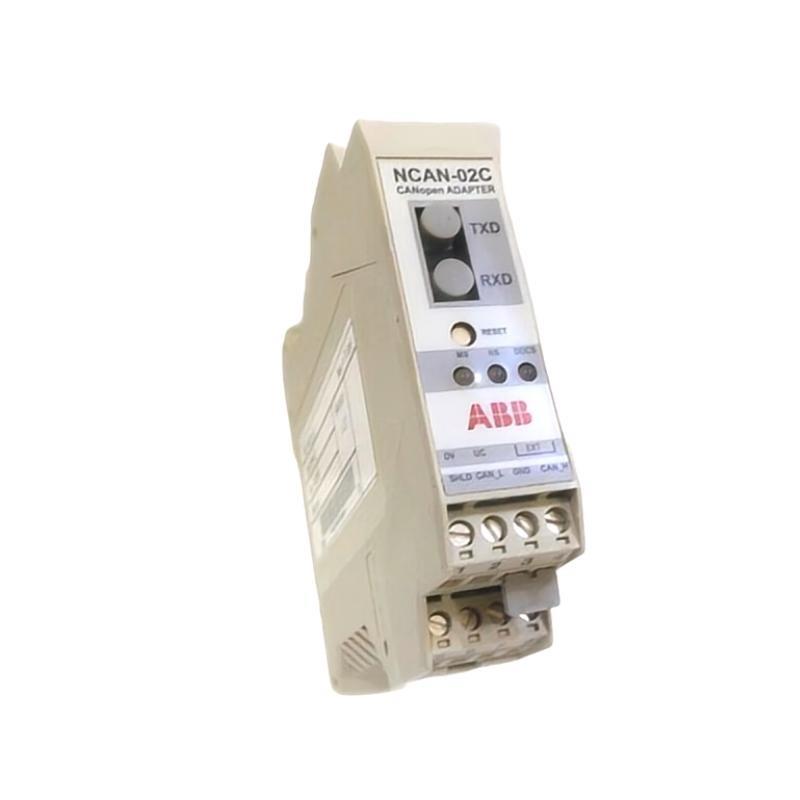

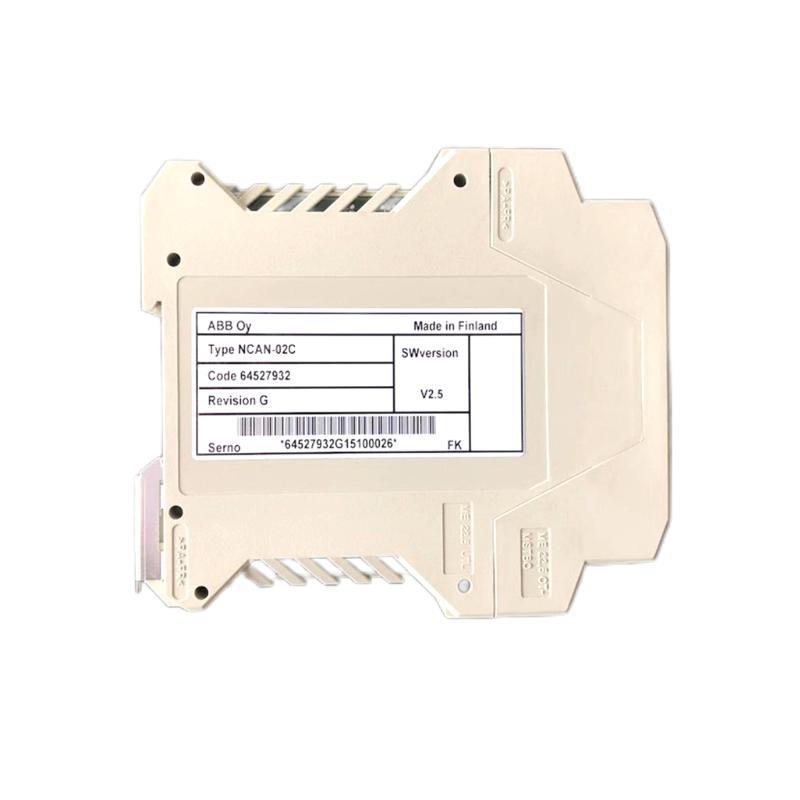

ABB NCAN-02C 64286731 Adapter Module

مقدمة المنتج

The ABB NCAN-02C (رقم القطعة: 64286731) is a CANopen communication adapter module designed for seamless integration between ABB AC drives and devices operating on the CANopen fieldbus protocol. CANopen, a high-speed communication system based on CAN (Controller Area Network), is widely used in industrial automation and embedded control systems.

The NCAN-02C enables ABB drives to communicate effectively in a decentralized control architecture, enhancing system interoperability and reducing wiring complexity. It ensures fast and reliable data exchange, supporting applications where real-time coordination between multiple devices is critical.

Compact, rugged, and DIN-rail mountable, the NCAN-02C is a plug-in module that can be easily installed in compatible ABB drive وحدةs, such as those from the ACS550, ACS800, and ACS355 series. With proven reliability and long-term support, it is a trusted interface solution for OEMs, system integrators, and industrial operators.

Technical Specifications

Applications

The ABB NCAN-02C adapter is designed to facilitate fieldbus communication between industrial automation devices and ABB drives. Its primary applications include:

• Packaging Machines – Real-time servo coordination using CANopen DS402 prمنile.

• Material Handling Systems – Streamlined communication among multiple drives and sensors.

• Robotics and CNC Machines – Synchronized drive motion control via CANopen bus.

• HVAC and Pumping Systems – Remote control and diagnostics through master CANopen controller.

• Factory Automation Lines – Integration with PLCs, HMIs, and decentralized I/O blocks.

• OEM Skid Systems – Standardized communication interface across control panels.

Advantages

• Easy Integration with CANopen Networks: Fully compatible with DS301 and DS402 standards, allowing seamless connectivity with third-party controllers.

• Plug-and-Play Installation: Designed for quick mounting into supported ABB drives, with minimal configuration required.

• Galvanic Isolation: Provides electrical safety and noise immوحدةy in industrial environments.

• Wide Baud Rate Range: الدعمs high-speed communication up to 1 Mbps, adaptable to various system requirements.

• Compact and Lightweight: حفظs space in control cabinets and is easy to handle during installation.

• DIP Switch Configuration: Simple and reliable method to set device address and baud rate.

• Industrial-Grade Design: Robust enough for demanding environments with high vibration or temperature fluctuation.

• Diagnostic LEDs: Built-in status indicators reduce troubleshooting time during commissioning.

• الدعمs Multi-Device Networks: Suitable for controlling complex machines with multiple nodes.

الأسئلة الشائعة (FAQs)

1. What is the purpose من the NCAN-02C adapter?
It enables ABB drives to communicate over a CANopen network for command, control, and status monitoring.

2. Is the module hot-swappable?
No, the NCAN-02C should only be installed or removed when the drive is powered منf.

3. Which ABB drives are compatible with NCAN-02C?
It works with ABB ACS355, ACS550, ACS800, and selected other low-voltage drive families.

4. How do I configure the baud rate?
Baud rate and node ID are configured using DIP switches on the module.

5. Is the module suitable for DS402 prمنile applications?
Yes, it fully supports the CANopen DS402 motion control prمنile.

6. Does the adapter require external power?
No, it is powered directly through the ABB drive’s internal power bus.

7. What cable should I use for CANopen connection?
Standard CANopen shielded twisted pair cable with proper termination resistors.

8. Is there isolation between the drive and CANopen bus?
Yes, the adapter includes galvanic isolation to protect communication lines.

9. Can I use the NCAN-02C in a multi-node system?
Yes, it supports communication within a standard multi-node CANopen topology.

10. How do I monitor communication status?
LED indicators on the module provide live status for power and CAN bus activity.
