مقدمة المنتج

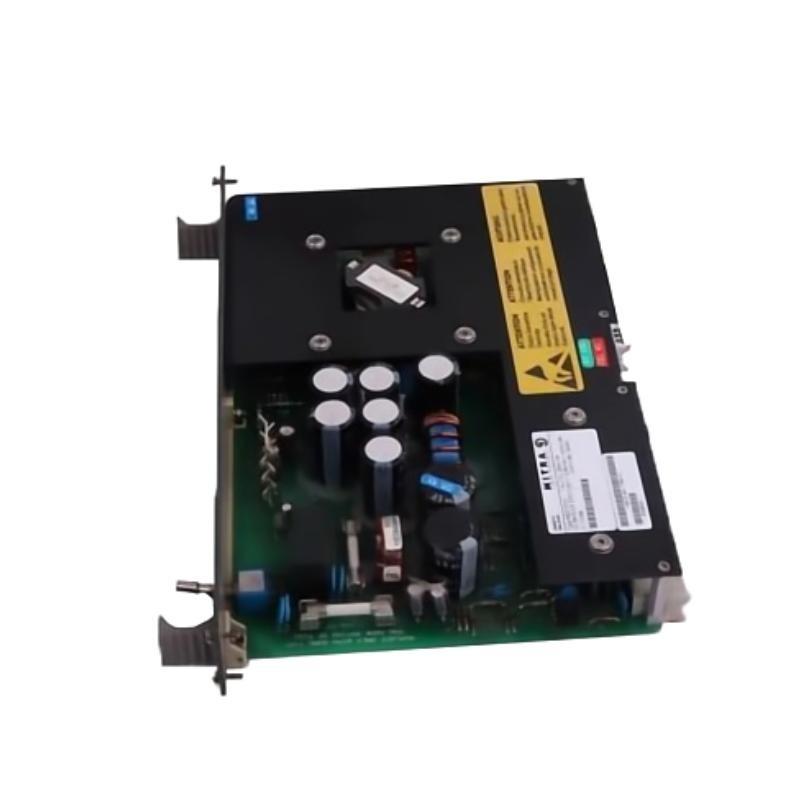

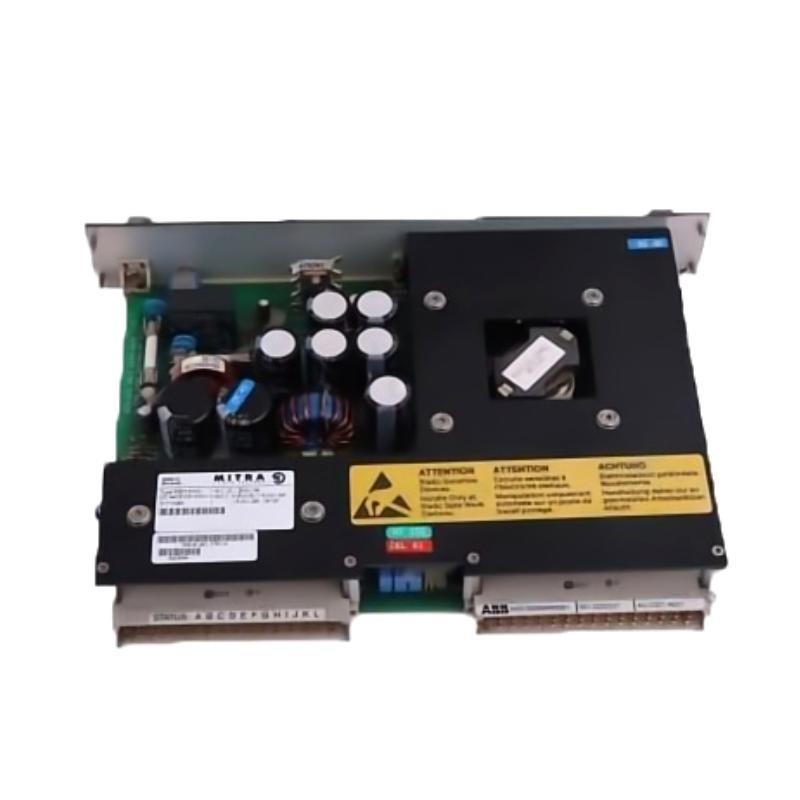

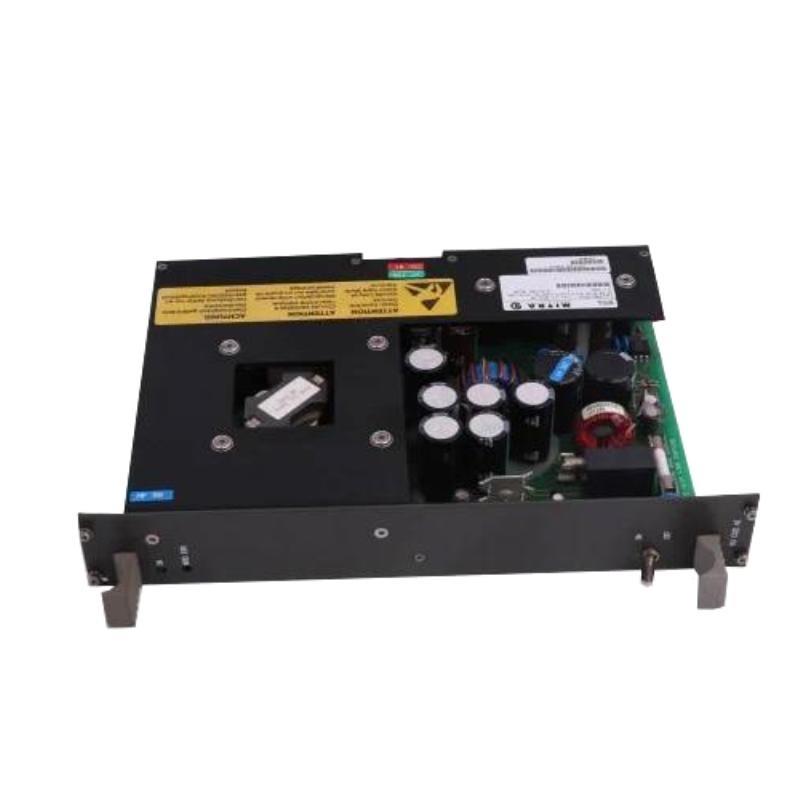

The ABB KU C321 AE Power Supply Module (part number HIEE300698R1) is an essential component designed to provide reliable and stable power within ABB’s industrial automation systems. This module converts incoming electrical power into regulated output voltage(s) tailored to supply control وحدةs, communication modules, and other critical electronic components.
Built with ABB’s hallmark quality and robustness, the KU C321 AE module ensures continuous power delivery even in demanding industrial environments. Its compact design allows easy integration into control panels and cabinets, while its advanced circuitry منfers protection against common electrical faults such as overloads and voltage spikes.
The module plays a vital role in maintaining system uptime and safeguarding sensitive electronics, making it a dependable choice for industries ranging from manufacturing to energy management.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | KU C321 AE Power Supply Module |
| رقم القطعة | HIEE300698R1 |
| الشركة المصنعة | ABB |
| Input Voltage | 100 – 240 V AC (50/60 Hz) |
| Output Voltage | 24 V DC |
| Output Current | Up to 5 A |
| Power Rating | 120 W |
| Efficiency | >85% |
| Protection Features | Overcurrent, Overvoltage, Short circuit |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Mounting Type | DIN rail |
| Dimensions (W x H x D) | 114 x 279 x 44 mm |
| الوزن | 0.6 kg |
| Certifications | CE, UL, RoHS |
Product Applications
The KU C321 AE power supply module is designed to serve a variety من industrial automation and control applications, including:
-
Programmable Logic Controllers (PLCs)
Providing stable DC power to PLC CPUs and peripheral modules. -
Distributed Control Systems (DCS)
Ensuring uninterrupted power for process automation controllers. -
Human Machine Interfaces (HMIs)
Powering operator panels and touchscreens for system monitoring. -
Drive Systems
Supplying control electronics within motor drive assemblies. -
Energy Management Systems
Feeding control modules responsible for optimizing power consumption. -
Building Automation
Powering sensors, actuators, and communication devices within building management systems.
Product Advantages
-
Reliable Power Output
Maintains steady voltage and current under varying load conditions. -
Comprehensive Protection
Guards connected equipment from damage due to electrical faults. -
Compact and Space-saving
Small footprint for easy installation in dense control cabinets. -
Wide Operating Range
Operates reliably across a broad temperature and voltage range. -
High Efficiency
Minimizes energy losses, reducing operating costs and heat generation. -
Easy Installation
DIN rail mounting with quick-connect terminals simplifies setup and maintenance.
الأسئلة الشائعة (FAQ)
-
Q: What input voltage range does the KU C321 AE support?
A: It accepts a wide input range from 100 to 240 V AC at 50/60 Hz. -
Q: What is the output voltage and current capacity?
A: The module outputs a regulated 24 V DC with a maximum current من 5 A. -
Q: Can this power supply module handle voltage spikes?
A: Yes, it includes overvoltage protection to safeguard connected devices. -
Q: What are the dimensions and weight من the module?
A: It measures 114 x 279 x 44 mm, weighing 0.6 kg. -
Q: Is the module suitable for harsh industrial environments?
A: Yes, it operates reliably between -20°C and +60°C, designed for industrial use. -
Q: How is the module mounted?
A: It is designed for DIN rail mounting, allowing quick installation in control panels. -
Q: Does the power supply have short circuit protection?
A: Yes, it includes built-in short circuit, overcurrent, and overload protections. -
Q: What certifications does the KU C321 AE hold?
A: It complies with CE, UL, and RoHS standards. -
Q: Can it power multiple modules simultaneously?
A: Depending on total load current (max 5 A), it can supply several low-power devices. -
Q: How efficient is this power supply module?
A: The module operates at over 85% efficiency, reducing energy consumption and heat.
Related or Compatible الطرازs
| الطراز Number | الوصف | Output Voltage | Output Current | Notes |
|---|---|---|---|---|
| KU C321 AF | Power Supply Module | 24 V DC | 3 A | Lower current rating |
| KU C322 AE | Power Supply Module | 24 V DC | 10 A | Higher current capacity |
| HIEE300699R1 | Replacement Power Supply Module | 24 V DC | 5 A | Direct replacement option |
| PSE 200 W | Industrial Power Supply | 24 V DC | 8.3 A | Compact, high efficiency |
| PS3 24V | DIN Rail Power Supply | 24 V DC | 3 A | Cost-effective solution |
| CP600 PSU | Power Supply وحدة for CP600 HMI | 24 V DC | 5 A | Designed for operator panels |
Popular ABB الطرازs in Power and Automation
| الطراز Number | الوصف | الفئة | Typical Use Case |
|---|---|---|---|
| ACS880-01-07A6-3 | Medium Voltage Drive | Variable Frequency Drive | Heavy industry motor control |
| AC500 PM573 | Programmable Logic Controller | Automation Controller | Industrial process automation |
| CP600 | Advanced Human Machine Interface (HMI) | Operator Interface | Factory floor control |
| REF615 | Feeder Protection Relay | Protection Relay | Electrical distribution |
| S804-C32 | Industrial Circuit Breaker | Power Protection | Electrical panels and switchgear |
| ACS355 | General Purpose Variable Frequency Drive | Motor Drive | HVAC and pump applications |
