مقدمة المنتج

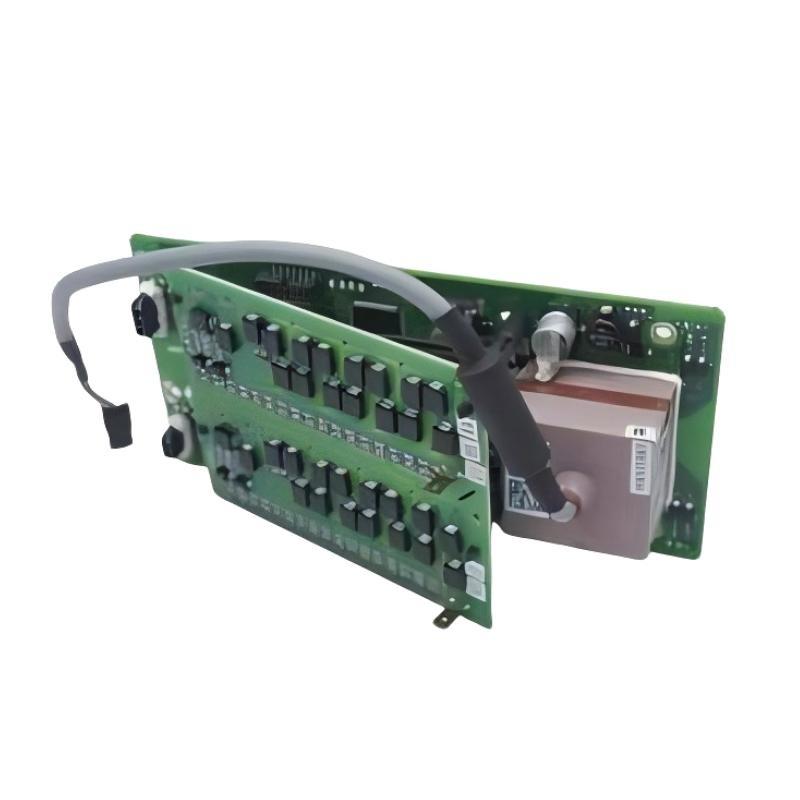

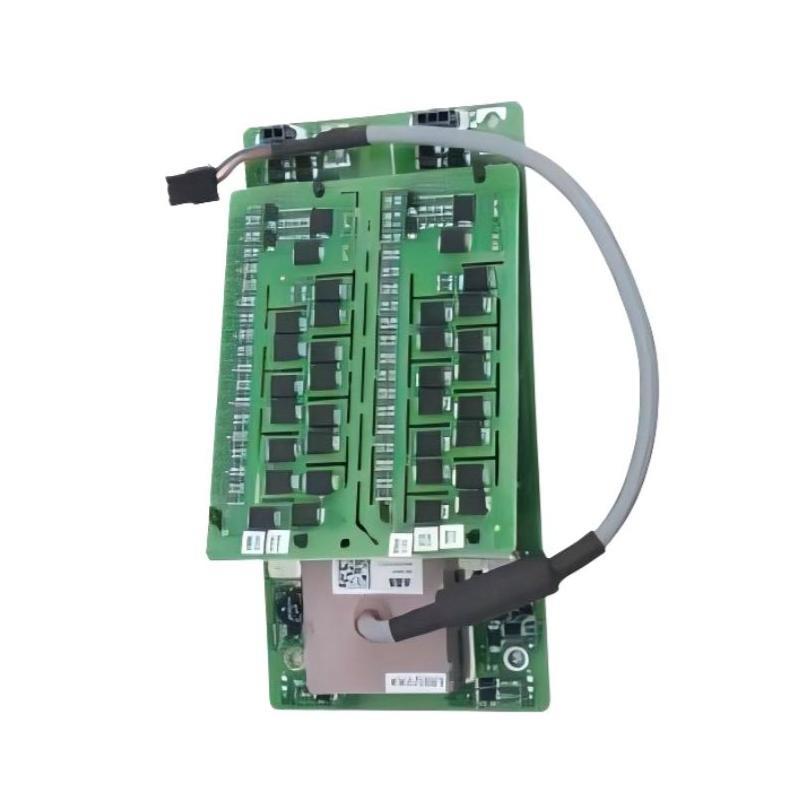

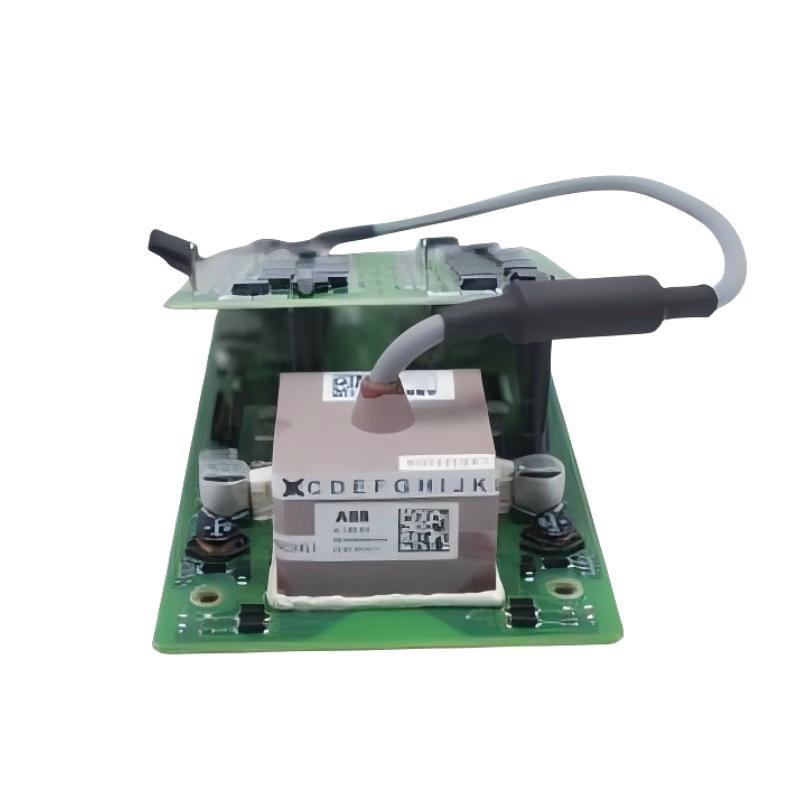

The ABB GD C806 B05 3BHE036290R0005 Control Board Module is a high-performance electronic control board designed for ABB medium- and high-voltage drive systems. This board is responsible for precise management and protection من power semiconductor devices, such as IGCTs and IGBTs, within ABB drives.
The module integrates advanced control logic, signal conditioning, and diagnostic feedback circuits into a compact and robust PCB design. It ensures accurate triggering من power devices, monitors operational parameters, and provides fault information for safe and reliable drive operation.
Its modular architecture allows seamless integration into ABB drive cabinets while supporting high-speed communication with other control and protection modules. The GD C806 B05 is engineered for industrial environments, ensuring stable operation under high electrical stress, voltage fluctuations, and transient conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product الطراز | GD C806 B05 |
| الشركة المصنعة | ABB |
| رقم القطعة | 3BHE036290R0005 |
| Product Type | Control Board Module |
| Function | Drive system control and protection |
| الدعمed Devices | IGCTs, IGBTs |
| Control Interface | Logic level / TTL inputs |
| Diagnostic Feedback | Voltage, current, fault status signals |
| Response Time | <10 µs |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Power Supply | 24 VDC / 12 VDC logic compatible |
| PCB Layers | 6-layer high-performance PCB |
| Component Count | >250 components |
| Mounting Type | Rack or slot-mounted |
| Connector Type | High-speed logic connectors, power terminals |
| Dimensions (L × W × H) | 200 × 150 × 45 mm |
| الوزن | 0.45 kg |
| Compliance | CE, RoHS, IEC 60204 |
Product Applications
The ABB GD C806 B05 Control Board Module is widely used in industrial and energy applications where precise drive control and protection are required:
-
Medium and High-Voltage Drives: Manages and protects power semiconductor devices in ABB drives.
-
Industrial Automation Systems: Integrates with motor control and process automation.
-
Power Conversion وحدةs: Controls rectifiers and inverters in industrial setups.
-
Renewable Energy Applications: Provides precise drive control for wind turbines and hydroelectric systems.
-
Heavy Machinery Control: الدعمs drive systems in industrial and manufacturing machinery.
-
Power Electronics Testing: Utilized in test benches for validating IGCT and IGBT operations.
-
Custom ABB Modules: Compatible with modular ABB high-power systems requiring reliable drive control.
Product Advantages
-
Fast Response: Sub-10 microsecond control for high-speed operations.
-
Accurate Control: Ensures precise triggering and timing for IGCT and IGBT devices.
-
Integrated Diagnostics: Outputs voltage, current, and fault information for system monitoring.
-
Compact and Modular Design: Easily installed in ABB racks or slots.
-
Industrial Reliability: Designed for harsh industrial environments with high electrical stress.
-
Flexible Interface: Accepts TTL and logic-level signals for system integration.
-
Enhanced Safety: Coordinates with overcurrent and protection modules to safeguard devices.
-
Compliance: Meets CE, RoHS, and IEC 60204 standards.
-
Maintenance-Friendly: Clear labeling and organized PCB layout for service convenience.
-
Thermal Performance: Efficient heat management under high-current loads.
الأسئلة الشائعة (FAQ)
-
What is the main function من the GD C806 B05 Control Board Module?
It provides control and protection for IGCTs and IGBTs in ABB medium- and high-voltage drives. -
Which semiconductor devices does this module support?
The module supports IGCTs and IGBTs used in ABB drives. -
What is the response time من this module?
The module operates with a response time من less than 10 microseconds. -
How is the module powered?
It uses 24 VDC or 12 VDC logic-compatible supply. -
Does the module provide diagnostic feedback?
Yes, it outputs voltage, current, and fault status signals for monitoring. -
Can this board be installed in ABB drive racks?
Yes, it supports rack-mounted and slot-mounted installations. -
What type من control interface does it use?
The module uses TTL or logic-level inputs. -
Is this module compliant with industrial standards?
Yes, it complies with CE, RoHS, and IEC 60204 standards. -
What is the operating temperature range?
The module operates between -20°C and +65°C. -
How does this module enhance system safety?
By providing precise control, monitoring, and coordination with protection modules, it ensures reliable and safe operation من high-power drives.
