Product الوصف

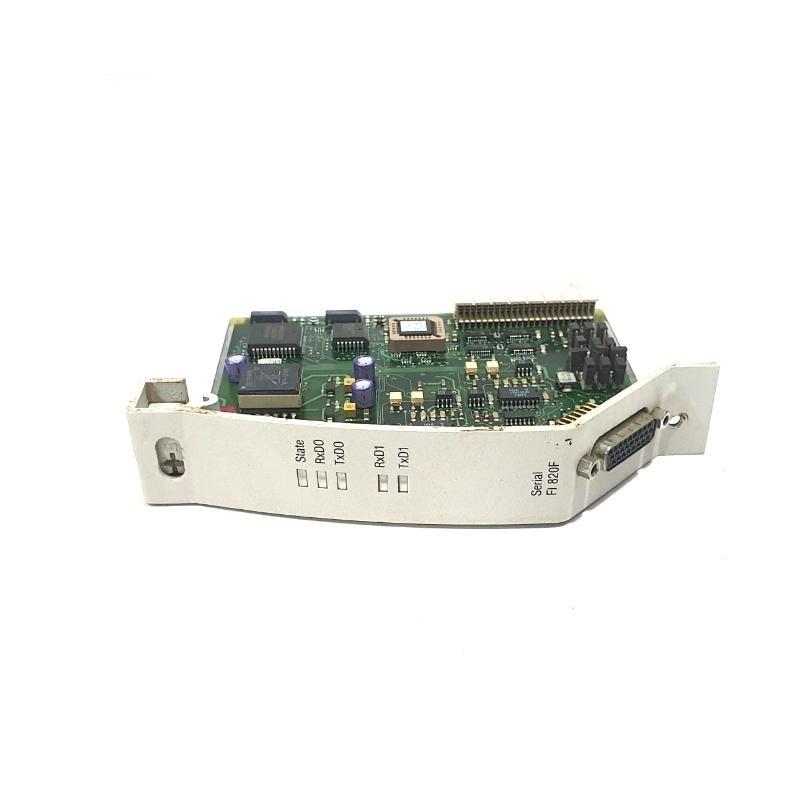

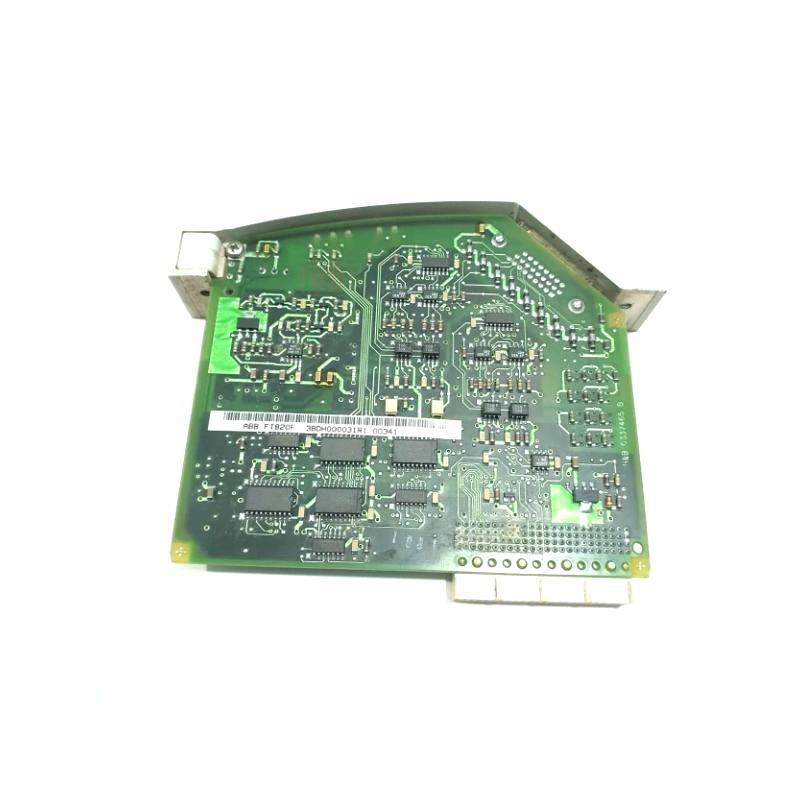

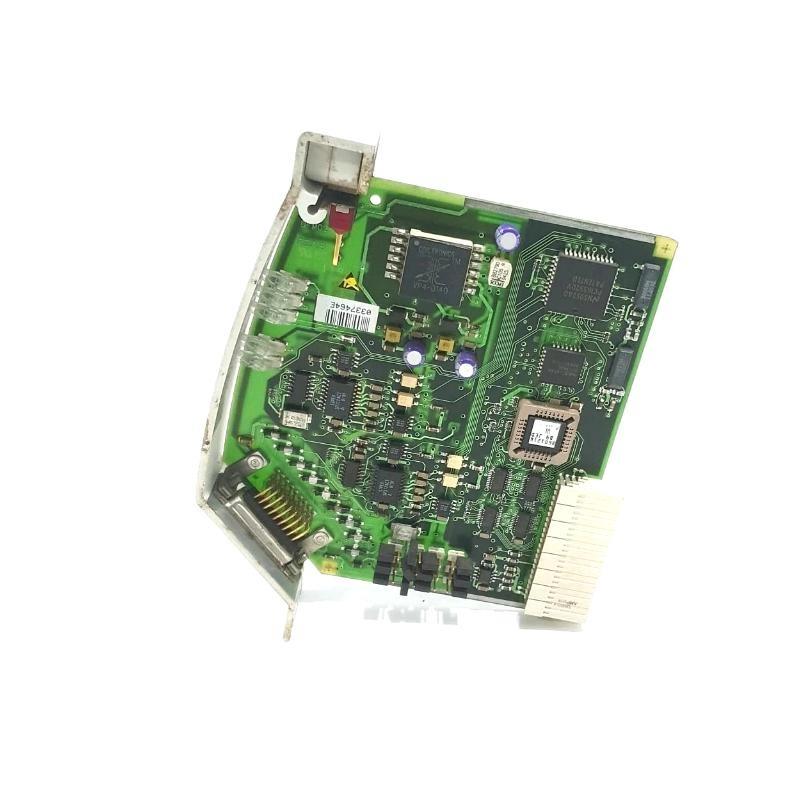

The ABB FI820F 3BDH000031R1 Fieldbus Module is a serial interface module designed for the ABB AC 800F FieldController. It provides two serial communication channels that support multiple protocols such as Modbus (master/slave), Protronic, telecontrol, and Sartorius scale. It is typically installed in slots F1–F4 من the controller. This module enables integration من various serial-based field devices into a Freelance control system.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | FI820F Fieldbus Module |
| رقم القطعة | 3BDH000031R1 |
| Communication Channels | 2 (serial) |
| الدعمed Protocols | Modbus (Master/Slave), Telecontrol, Protronic, Sartorius |
| Mounting Slots | F1–F4 من AC 800F FieldController |
| Dimensions | 125 × 155 × 28 mm |
| الوزن | 0.145 kg |
| Compatible Controller | ABB AC 800F |
| Usage Environment | Industrial automation systems |
Applications
-
Connecting serial field devices like bar code readers, scales, or subsystems to the AC 800F.
-
Integration من Modbus-based equipment in process control.
-
Expanding control system capabilities without complex wiring.
-
Retrمنitting legacy equipment into modern ABB Freelance systems.
Advantages
-
الدعمs multiple serial protocols for broad compatibility.
-
Compact and lightweight design for easy installation.
-
Enhances system flexibility and scalability.
-
Reliable communication with field devices.
-
Plug-and-play integration with ABB AC 800F.
FAQ
Q1: What is the main purpose من the FI820F module?
A1: It enables serial communication between the AC 800F controller and external devices using protocols like Modbus.
Q2: How many communication channels does it provide?
A2: It provides 2 independent serial channels.
Q3: Which slots can the FI820F be installed in?
A3: It can be installed in slots F1 to F4 من the AC 800F.
Q4: What protocols does it support?
A4: It supports Modbus Master/Slave, Telecontrol, Protronic, and Sartorius.
Q5: Is it possible to use more than one FI820F in a controller?
A5: Yes, up to four FI820F modules can be used in the AC 800F.
Q6: What is the weight من the module?
A6: The module weighs approximately 0.145 kg.
Q7: Does it require additional power supply?
A7: No, it is powered by the AC 800F controller itself.
Q8: Can it be hot-swapped?
A8: No, the module must be installed when the system is powered down.
Q9: What is the typical use case من FI820F?
A9: Integrating serial devices like scales, barcode readers, or remote I/O panels into the ABB Freelance control system.
Q10: Is it suitable for redundant configurations?
A10: Yes, the module can be used in redundant AC 800F setups.
Recommended Related or Same-Series الطرازs
| الطراز | الوصف | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|
| FI810F | CAN module, 3 channels | 125 × 155 × 28 | 0.145 |
| FI830F | Prمنibus DP module | 125 × 155 × 28 | 0.145 |
| SA801F | Power supply 115/230 V AC | 125 × 155 × 28 | 0.145 |
| SD802F | Power supply 24 V DC (redundant) | 125 × 155 × 28 | 0.145 |
| EI801F | Ethernet 10Base2 | 125 × 155 × 28 | 0.145 |
| EI803F | Ethernet 10/100Base-T Twisted Pair | 125 × 155 × 28 | 0.145 |
Popular ABB الطرازs
| الطراز | الوصف | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|
| PM861K01 | Processor وحدة Kit System 800xA | 125 × 155 × 28 | 0.145 |
| PM866 | Processor وحدة System 800xA | 125 × 155 × 28 | 0.145 |
| DO818 | Digital Output Module S800 I/O | 125 × 155 × 28 | 0.145 |
| AI810 | Analog Input Module S800 I/O | 125 × 155 × 28 | 0.145 |
| AO810 | Analog Output Module S800 I/O | 125 × 155 × 28 | 0.145 |
| DI810 | Digital Input Module S800 I/O | 125 × 155 × 28 | 0.145 |
