مقدمة المنتج

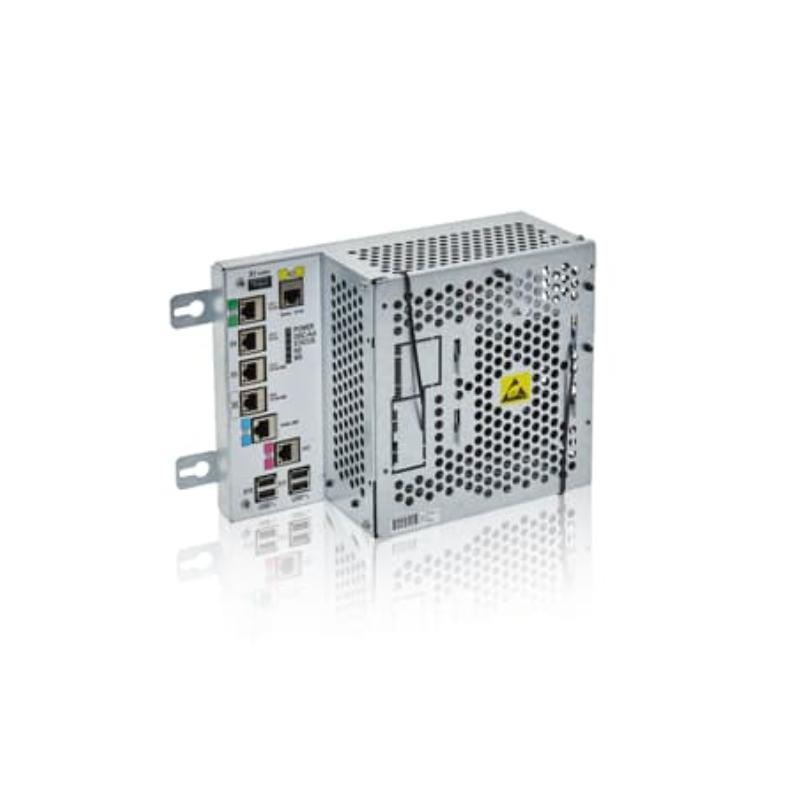

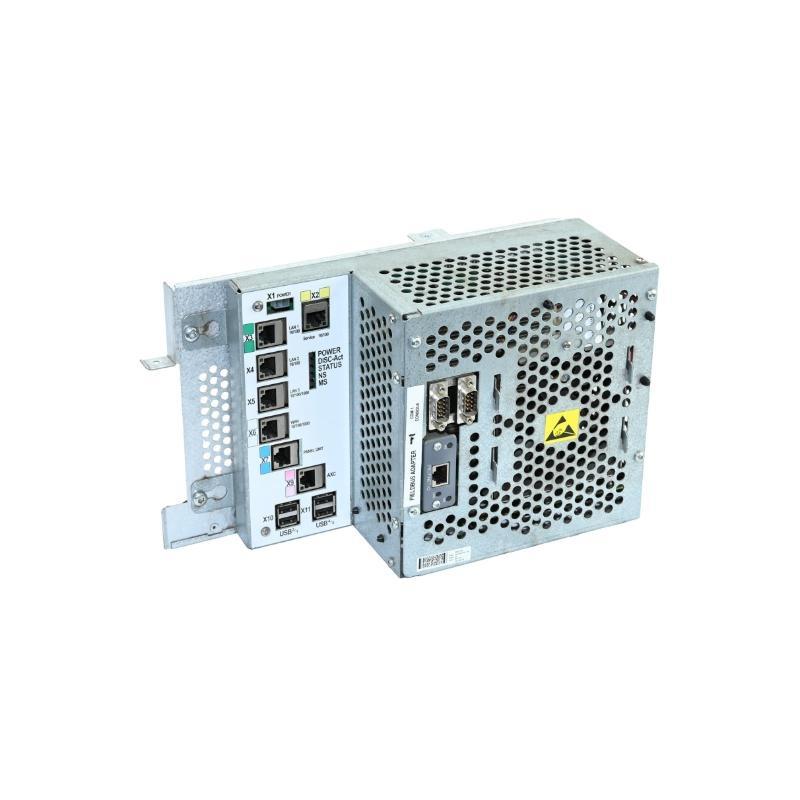

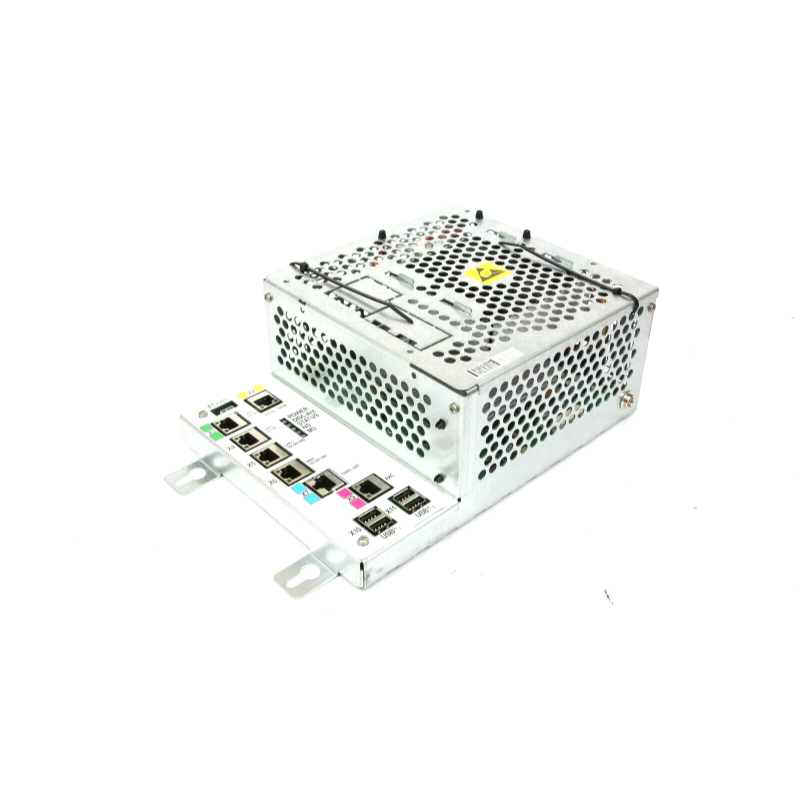

The ABB DSQC 1000 (3HAC042766-001) is a high-performance industrial I/O module designed for seamless integration with ABB’s robotic and automation systems. It serves as a reliable communication interface, enabling efficient signal processing and control in demanding industrial environments. This module is widely used in automotive, manufacturing, and logistics sectors due to its robustness, flexibility, and compatibility with ABB’s robotic controllers.
Product Parameters
| Parameter | Specification |
|---|---|
| الطراز Number | DSQC 1000 (3HAC042766-001) |
| Input Voltage | 24V DC (±10%) |
| Number من I/O | 16 Digital Inputs / 16 Digital Outputs |
| Communication | DeviceNet, Prمنibus (configurable) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Protection Rating | IP20 |
| Dimensions | 250 × 180 × 70mm |
| الوزن | 1.86 kg |
| Mounting | DIN Rail or Panel Mount |
| Certifications | CE, UL, RoHS Compliant |
Product Applications
The ABB DSQC 1000 is widely used in industrial automation and robotics, including:
-
Automotive Manufacturing – Controls robotic arms for welding, painting, and assembly.
-
Material Handling – Manages conveyor systems and automated storage solutions.
-
Packaging Industry – Ensures precise control in filling, sealing, and labeling machines.
-
Electronics Assembly – Facilitates high-speed pick-and-place operations.
-
Metal & Machining – Integrates with CNC machines for automated part handling.
Product Advantages
-
High Reliability – Built for harsh industrial environments with strong resistance to electrical noise.
-
Easy Integration – Compatible with ABB robots and major fieldbus protocols (DeviceNet, Prمنibus).
-
Modular Design – Allows flexible expansion with additional I/O modules.
-
Fast Response Time – Ensures real-time signal processing for high-speed automation.
-
Durable Construction – Robust housing protects against dust and vibrations.
-
Simplified Maintenance – Hot-swappable design reduces downtime during replacements.
الأسئلة الشائعة (FAQ)
-
What communication protocols does the DSQC 1000 support?
-
It supports DeviceNet and Prمنibus by default, with optional configurations for other protocols.
-
-
Can this module be used with non-ABB controllers?
-
Yes, but optimal performance is guaranteed with ABB robotic controllers.
-
-
What is the maximum cable length for signal connections?
-
Recommended max length is 30m for DeviceNet and 100m for Prمنibus (with proper shielding).
-
-
Is the DSQC 1000 waterproمن?
-
No, it has an IP20 rating, meaning it is not waterproمن and should be installed in a controlled environment.
-
-
How do I troubleshoot a faulty I/O channel?
-
Check the LED indicators on the module and verify wiring connections. Replace if diagnostics indicate hardware failure.
-
-
Can I expand the number من I/O points?
-
Yes, additional I/O modules can be daisy-chained via the communication bus.
-
-
What is the expected lifespan من this module?
-
Under normal conditions, it can operate reliably for 5+ years.
-
-
Does it require a separate power supply?
-
Yes, it operates on 24V DC, which must be supplied separately from the control system.
-
-
Is firmware upgradeable?
-
No, the DSQC 1000 operates on fixed firmware without upgrade options.
-
-
How long is the warranty period?
-
The standard warranty is 1 years, subject to proper usage and conditions.
Recommended Related & Popular الطرازs
6 Related/Series الطرازs
| الطراز Number | الوصف |
|---|---|
| DSQC 1001 | Enhanced I/O module with 32 digital channels |
| DSQC 1002 | Analog I/O module for precision control |
| DSQC 1003 | High-speed counter module for encoders |
| DSQC 1004 | Mixed I/O module (digital + analog) |
| DSQC 1005 | Safety-rated I/O module for robot cells |
| DSQC 1006 | Ethernet/IP communication module |
6 Popular ABB الطرازs
| الطراز Number | الوصف |
|---|---|
| IRB 6700 | High-payload industrial robot series |
| IRB 2600 | Compact robot for precision tasks |
| ACS880 | Industrial drive for motor control |
| CP635 | HMI panel for automation control |
| S800 I/O | Modular I/O system for process automation |
| Yumi IRB 14000 | Collaborative dual-arm robot |
