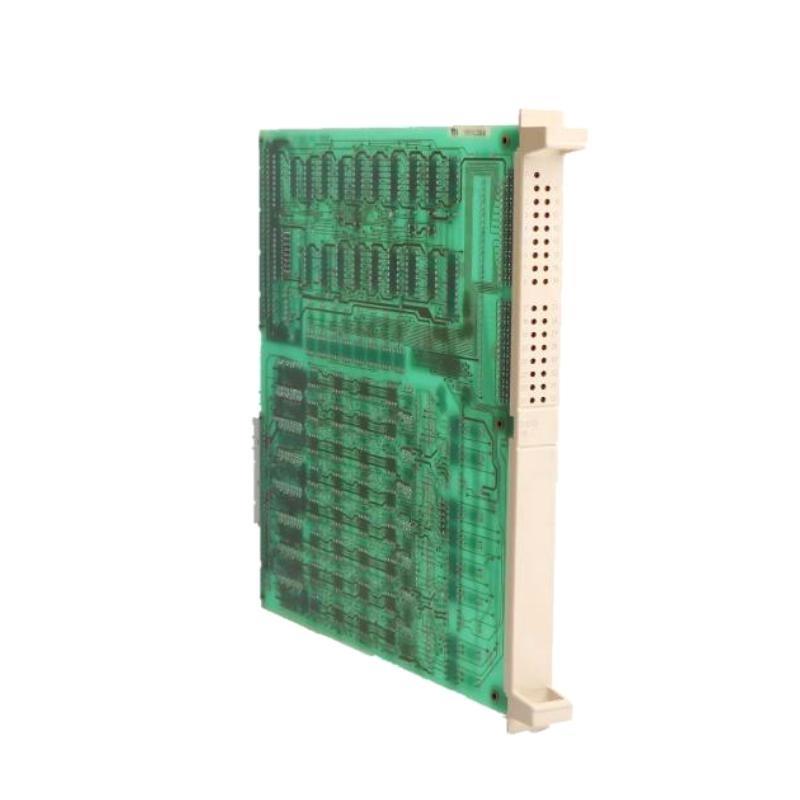

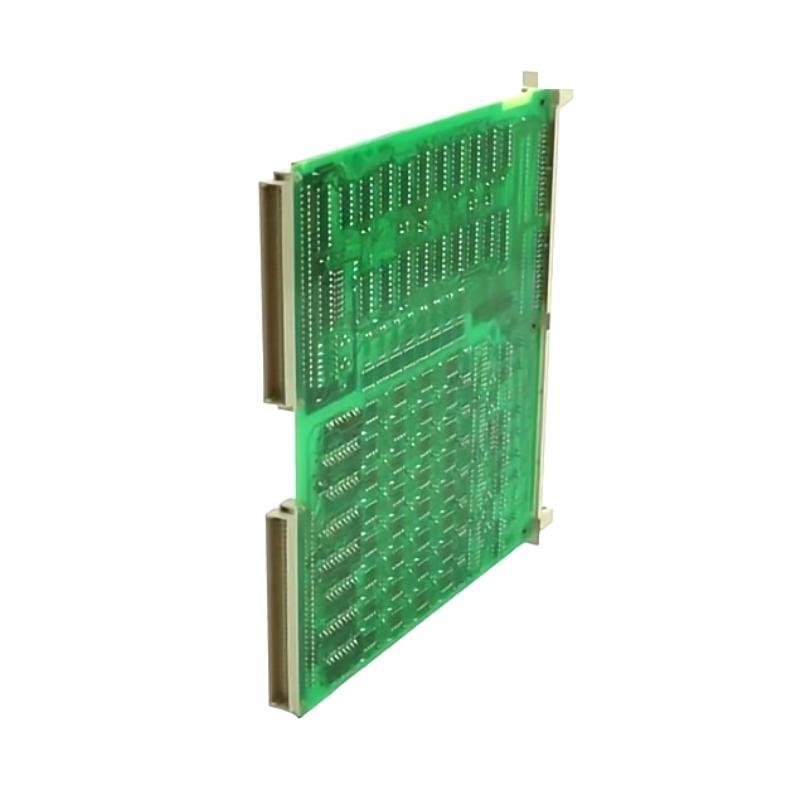

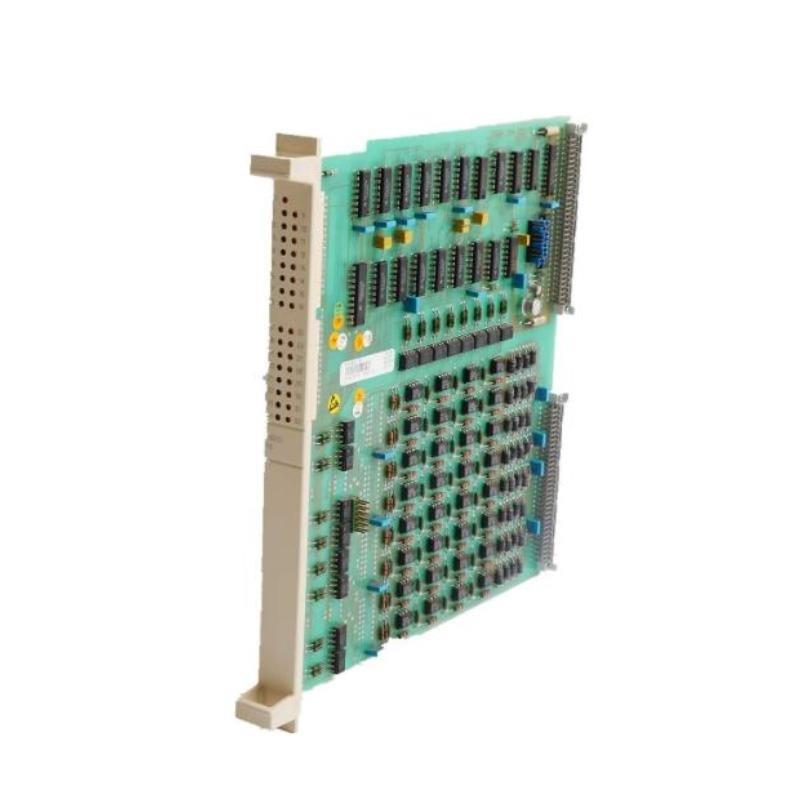

ABB DSDO 115 57160001-NF Digital Output Module

مقدمة المنتج

The ABB DSDO 115 57160001-NF Digital Output Module is a high-performance I/O module designed for use in industrial automation systems. It is specifically developed to control and monitor digital output signals in process control applications. This module is part من the ABB series من I/O modules, which are recognized for their reliability, ease من integration, and robust performance in various industrial environments.

The DSDO 115 module interfaces with field devices to provide high-speed digital output, typically used for controlling actuators, valves, relays, or other digital output devices within a system. It is optimized for applications in industries such as power generation, oil & gas, manufacturing, and chemical processing.

This module supports a wide range من digital output devices, منfering a flexible and scalable solution for process automation. With its compact form factor and high integration capabilities, the DSDO 115 provides a reliable and cost-effective solution for complex control systems.

مواصفات المنتج

Product Applications

The ABB DSDO 115 57160001-NF Digital Output Module is designed for use in a variety من industrial applications where high-speed digital control is required. Some من the common applications include:

• Power Generation: Controls the operation من turbines, generators, and other power generation equipment by sending digital output signals to relays and actuators.

• Oil and Gas: Used to control valves, actuators, and other equipment on منfshore platforms and in pipelines to ensure safe and efficient operation.

• Chemical Processing: Controls digital devices such as actuators, alarms, and process valves to regulate the flow من chemicals, ensuring the safety and efficiency من the system.

• Manufacturing Automation: Provides output signals for controlling assembly line equipment, robots, conveyors, and other machinery in automated manufacturing processes.

• Water Treatment: Controls pumps, valves, and other equipment in water treatment plants, helping maintain smooth operations and quality control.

• HVAC Systems: Used for controlling heating, ventilation, and air conditioning systems, adjusting temperature and humidity levels based on real-time data.

• Industrial Control Systems: Acts as part من the backbone من a process control system, providing digital output control for a wide range من applications in automated environments.

Product Advantages

• High-Speed Control: With a response time من less than 5 ms, the DSDO 115 ensures that digital output devices are controlled almost instantaneously, which is critical for real-time applications.

• Robust Design: The module features galvanic isolation between input and output, protecting the system from voltage spikes and electrical noise.

• Flexible Integration: Compatible with ABB’s Distributed Control Systems (DCS) and other industrial automation systems, the DSDO 115 can be easily integrated into various setups.

• High Output Current: Each channel can handle up to 0.5 A من current, making the module suitable for controlling powerful devices like relays and actuators.

• Compact Form Factor: With dimensions من only 324 × 22.5 × 234 mm, this module منfers high functionality in a compact design, ideal for space-constrained environments.

• Energy Efficient: Consuming only 3 W من power, the module منfers an energy-efficient solution for industrial control applications.

• High Reliability: The module is built to operate in harsh environments, with a wide operating temperature range من -20°C to +60°C and protection against short circuits and overvoltage conditions.

• Easy Installation: The DSDO 115 can be easily mounted on a DIN rail, simplifying installation and reducing setup time.

• Comprehensive Protection: Equipped with short-circuit and overvoltage protection, the module ensures safe and reliable operation in industrial settings.

الأسئلة الشائعة (FAQ)

1. Q: What is the maximum current the DSDO 115 module can output per channel?
   A: The module can output a maximum من 0.5 A per channel.

2. Q: What is the operating temperature range من the DSDO 115 module?
   A: The module operates within a temperature range من -20°C to +60°C.

3. Q: Can the DSDO 115 be used in hazardous environments?
   A: While the module is built for industrial applications, it is important to check for specific certifications for hazardous environments. The DSDO 115 is CE and UL certified, providing safety and reliability.

4. Q: How many digital output channels does the DSDO 115 module support?
   A: The DSDO 115 supports 16 digital output channels.

5. Q: What is the power consumption من the DSDO 115 module?
   A: The module has a typical power consumption من 3 W.

6. Q: Does the DSDO 115 module provide any form من protection?
   A: Yes, it includes short-circuit protection and overvoltage protection to safeguard the system.

7. Q: How is the DSDO 115 module mounted?
   A: The module is mounted using a DIN rail, which is standard for industrial control systems.

8. Q: What types من devices can be controlled using the DSDO 115 module?
   A: The module can control devices such as actuators, relays, valves, and other digital output devices.

9. Q: What is the response time من the module?
   A: The module has a response time من less than 5 ms.

10. Q: What certification does the DSDO 115 module hold?
    A: The module is CE, UL, and RoHS certified, ensuring compliance with international safety and environmental standards.
