مقدمة المنتج

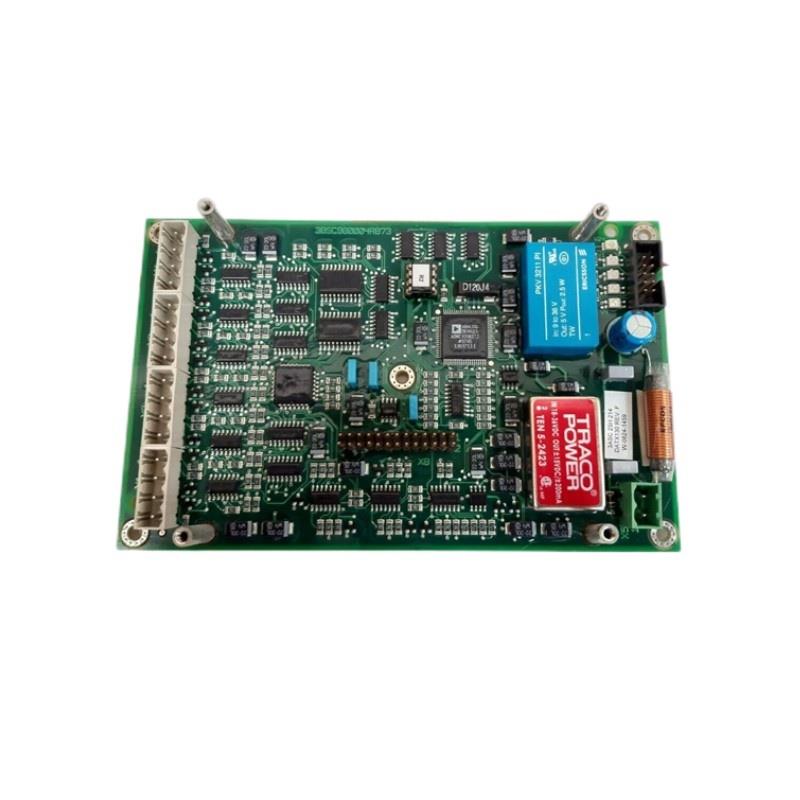

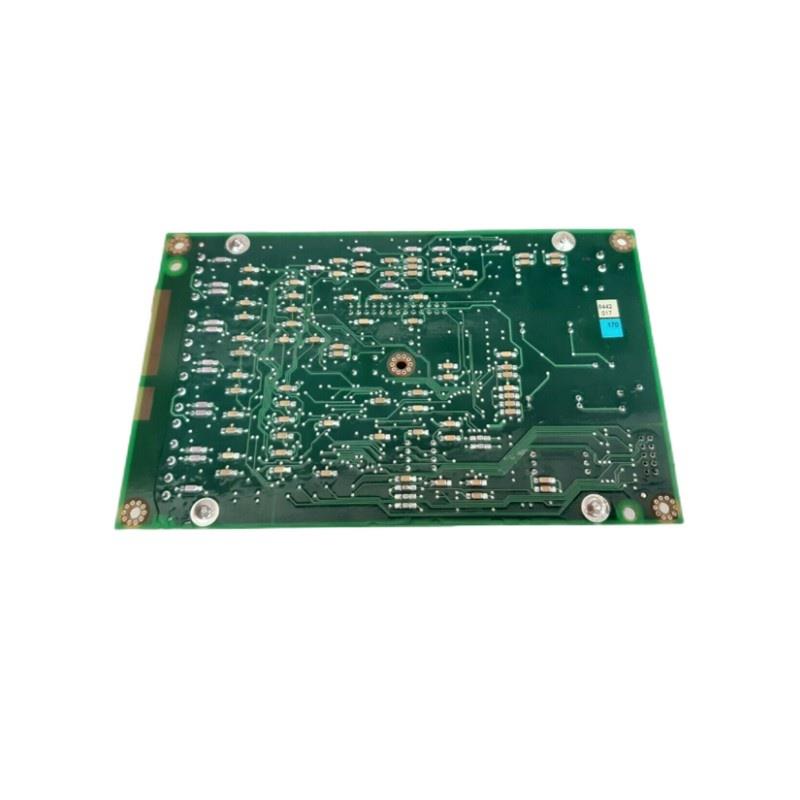

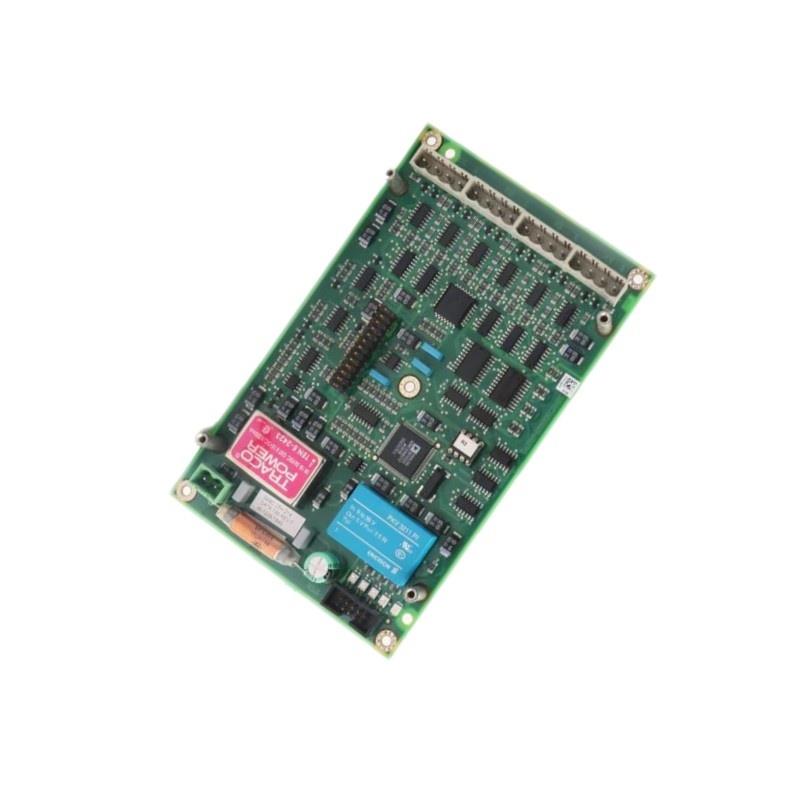

The ABB DATX 130 3ASC25H214 Rotor Feedback Board is a high-performance signal interface module designed to capture precise rotor position and speed feedback for industrial drive systems. Developed as part من ABB’s automation and motion control portfolio, the DATX130 module ensures highly accurate and reliable data acquisition from feedback devices such as rotary encoders, resolvers, or tachogenerators.
This feedback board plays a critical role in modern motor drive and control applications, supporting advanced features like vector control, field-oriented control (FOC), and high-performance speed regulation. By delivering real-time rotor feedback to control systems such as ABB AC 800M, Symphony Plus, and advanced variable frequency drives (VFDs), the DATX130 enables superior motor performance across a wide range من industrial applications.
Its robust signal conditioning, high-speed data processing, and galvanic isolation ensure that the system remains immune to electrical noise and disturbances — even in harsh industrial environments. Built with ABB’s renowned quality standards, the DATX130 منfers long-term reliability and exceptional integration flexibility.
مواصفات المنتج
| Parameter | Value |
|---|---|
| Product Name | ABB DATX 130 3ASC25H214 Rotor Feedback Board |
| Device Type | Rotor Feedback Interface Board |
| Feedback Signal Types الدعمed | Encoder (Incremental / Absolute), Resolver, Tachogenerator |
| Number من Channels | 1 main channel |
| Input Signal Frequency | Up to 50 kHz |
| Resolution | Up to 16 bits (depending on encoder type) |
| Isolation Voltage | 3000 Vrms isolation between signal and control side |
| Signal الحالةing | Differential / Single-ended compatible |
| Sampling Rate | 100 kHz |
| Output Format | Digital pulse / quadrature / analog |
| Communication Interface | Direct to ABB control systems (AC 800M, Symphony Plus) |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Cooling Method | Natural convection |
| Mounting Type | Panel / PCB rack mount |
| Dimensions (H x W x D) | 185 x 64 x 210 mm |
| الوزن | 0.141 kg |
| Certifications | CE, RoHS compliant |
| Compatible Systems | ABB AC 800M, Symphony Plus, DCS drive systems |
Product Applications
The ABB DATX 130 Rotor Feedback Board is used in applications that demand high accuracy in rotor position and speed measurement, contributing to improved control and system efficiency:
-
High-Performance Motor Drives: Supplies real-time rotor position feedback for vector and field-oriented control (FOC).
-
Industrial Automation: Ensures precise motion control in robotic arms, gantry systems, and CNC machines.
-
Pulp and Paper: الدعمs speed-regulated motors for continuous production lines.
-
Metals Industry: Enables accurate control من rolling mills, extruders, and forging presses.
-
Marine and Offshore: Provides position feedback for propulsion systems and thrusters.
-
Cranes and Hoists: Ensures safe and accurate load positioning.
-
Energy Sector: Used in wind turbine pitch systems and hydroelectric turbine control.
Product Advantages
-
High Accuracy: الدعمs up to 16-bit resolution for precise rotor position detection.
-
Wide Signal Compatibility: Interfaces with incremental/absolute encoders, resolvers, and tachogenerators.
-
Noise Immوحدةy: 3000 Vrms isolation protects against electrical noise and transients.
-
High-Speed Sampling: Operates with a 100 kHz sampling rate for dynamic response.
-
Flexible Integration: Directly compatible with ABB AC 800M, Symphony Plus, and other advanced drive systems.
-
Compact Design: Space-efficient size (185 x 64 x 210 mm) for easy integration into control cabinets.
-
Passive Cooling: Utilizes natural convection, eliminating fan maintenance.
-
Rugged Build: Operates reliably in -20°C to +70°C industrial environments.
-
Reduced Downtime: Built with industrial-grade components for extended life and high MTBF.
-
ABB Quality: Designed to ABB’s stringent manufacturing and performance standards.
الأسئلة الشائعة (FAQ)
1. What is the main function من the ABB DATX 130 board?
It provides precise rotor position and speed feedback for use in advanced motor control applications.
2. What feedback devices does it support?
It supports encoders (incremental and absolute), resolvers, and tachogenerators.
3. Can the DATX 130 be used with ABB Symphony Plus control systems?
Yes, the board is fully compatible with ABB Symphony Plus and AC 800M platforms.
4. What is the maximum input frequency it supports?
It can handle feedback signals up to 50 kHz.
5. What industries typically use the DATX130 board?
It is used in metals, paper, marine, manufacturing automation, and energy sectors.
6. What kind من isolation does the board provide?
It منfers 3000 Vrms galvanic isolation between the signal and control sides.
7. What is the resolution capability من the board?
Depending on the encoder type, it supports up to 16-bit resolution.
8. Does the board require active cooling?
No, it uses natural convection cooling for maintenance-free operation.
9. What is the size and weight من the module?
It measures 185 x 64 x 210 mm and weighs 0.141 kg.
10. Is the module compatible with legacy ABB systems?
Yes, it integrates smoothly with both modern and legacy ABB drive platforms.
Recommended Related الطرازs (Same Series or Related الطرازs)
| الطراز Number | Key Specifications |
|---|---|
| ABB DATX100 | Pulse transformer board for thyristor / IGBT triggering |
| ABB DATX102 | 4-channel pulse transformer board |
| ABB DATX120 | High-isolation encoder interface module |
| ABB DATX140 | Dual-channel rotor feedback board |
| ABB DASD146 | Thyristor module with integrated feedback loop |
| ABB DASA110 | Power supply module for signal conditioning and drives |
Recommended Popular الطرازs from ABB
| الطراز Number | Key Specifications |
|---|---|
| ABB PM861 | High-performance CPU module for AC 800M |
| ABB CI854 | PROFIBUS communication interface module |
| ABB AI810 | 8-channel analog input module (4–20 mA) |
| ABB DO810 | 16-channel digital output module (24 VDC) |
| ABB CP600 | HMI touch panel for industrial automation |
| ABB CI860 | Ethernet communication interface for industrial networks |
