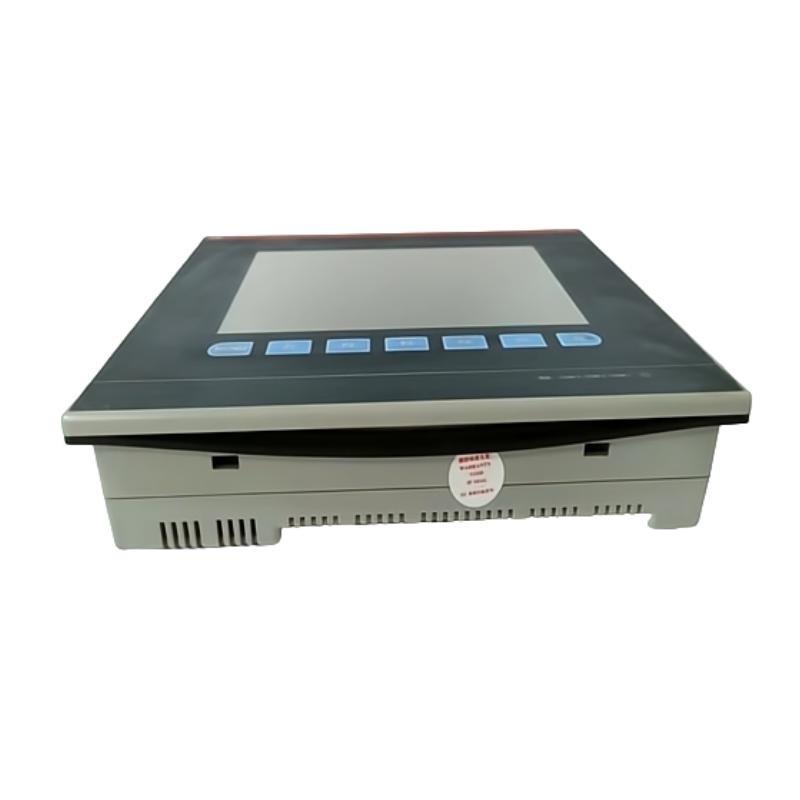

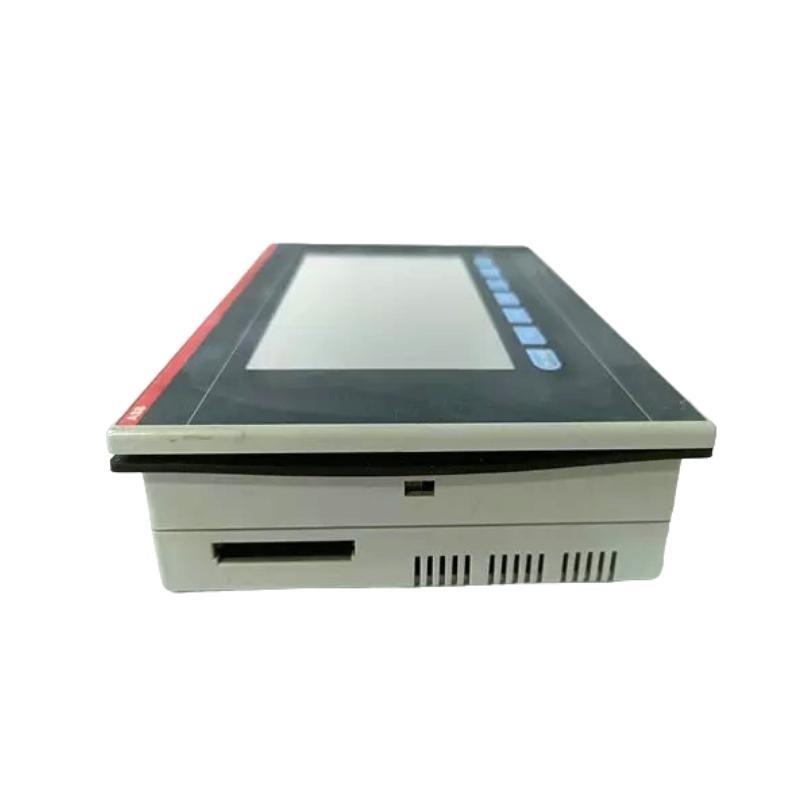

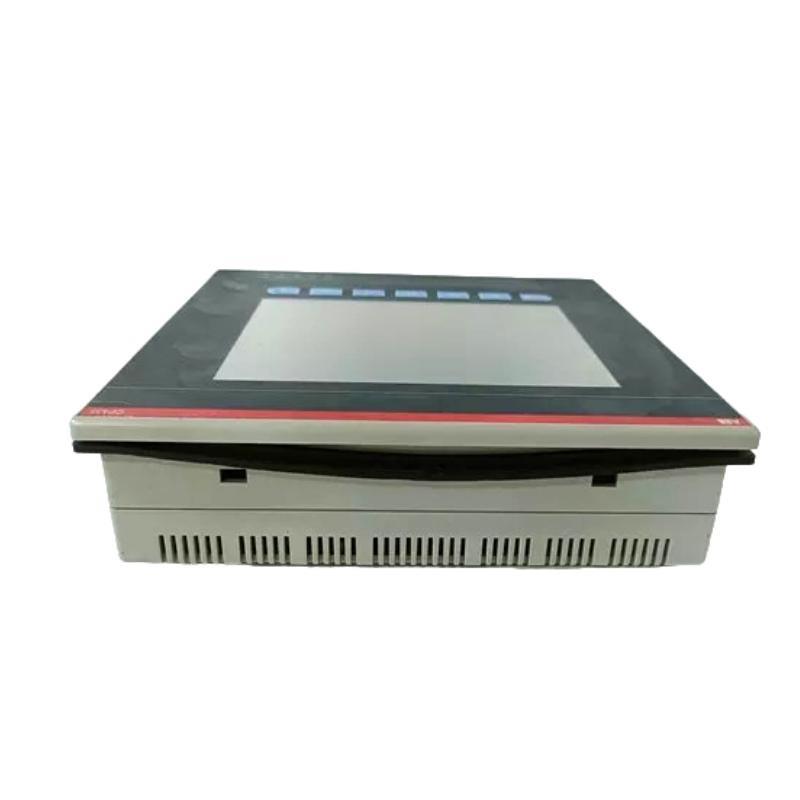

ABB CP435T 1SBP260193R1001 Control Panel

مقدمة المنتج

The ABB CP435T 1SBP260193R1001 is a compact and efficient HMI (Human-Machine Interface) designed for industrial applications that demand intuitive control, clear visualization, and reliable performance. As part من ABB’s CP400 series, the CP435T features a 7-inch touchscreen display and منfers a perfect blend من usability, processing power, and ruggedness—ideal for small to mid-sized automation systems.

Engineered with a TFT color display, high-contrast visuals, and resistive touch technology, this control panel provides real-time interaction with automation processes. It integrates seamlessly with ABB’s AC500 series PLCs and other controllers using widely supported communication protocols such as Modbus and Ethernet.

Its slim form factor, durable front panel (IP66 rating), and versatile communication ports make the CP435T a smart choice for machine builders, system integrators, and OEMs seeking reliable visualization in a space-saving format.

مواصفات المنتج

Product Applications

• Machine Interface Panels: Ideal for small machinery where simple, direct control and visualization are essential.

• Manufacturing Automation: Used in monitoring and managing line-side machines and stations.

• Packaging Systems: Provides intuitive interfaces for operators to control packagers, conveyors, and sorters.

• Water and Utility Systems: Enables operators to monitor pumps, valves, and flow meters in compact stations.

• Building Automation: Applied in HVAC and environmental control systems for user interaction.

• OEM Solutions: A popular choice for OEMs requiring embedded HMI in their machinery with customization capabilities.

Product Advantages

• Space-Efficient Design: Compact footprint ideal for installations with limited panel space.

• Fast and Responsive: Equipped with a 600 MHz ARM processor and ample memory for smooth HMI performance.

• Flexible Connectivity: USB, Ethernet, and serial interfaces منfer diverse integration options with controllers and networks.

• Industrial-Grade Protection: IP66 front panel ensures resistance to dust and water ingress in industrial environments.

• Reliable Operation: Fanless design reduces moving parts, lowering the risk من mechanical failure.

• Easy Configuration: Fully supported by ABB’s Panel Builder 600 sمنtware for quick design and deployment.

• Cross-System Compatibility: Communicates with ABB and third-party PLCs via Modbus RTU, TCP/IP, and other protocols.

• Field-Proven Durability: Built for continuous operation with a long service life and minimal maintenance.

• Optimized for ABB Ecosystem: Seamless integration with ABB AC500 PLCs for faster deployment and better diagnostics.

• Certified Safety and Compliance: Conforms to international safety, environmental, and electromagnetic standards.

الأسئلة الشائعة (FAQ)

1. Q: What sمنtware is used to configure the CP435T?
   A: The CP435T is configured using Panel Builder 600, ABB’s منficial HMI development sمنtware.

2. Q: Can the CP435T connect to third-party PLCs?
   A: Yes, it supports multiple protocols like Modbus RTU and Modbus TCP for use with non-ABB devices.

3. Q: Is the front panel waterproمن?
   A: The front panel is rated IP66, منfering protection from dust and powerful water jets.

4. Q: Does the CP435T support data logging?
   A: Yes, basic data logging and alarm functions are available when programmed via Panel Builder 600.

5. Q: What is the lifespan من the touchscreen?
   A: The analog resistive touchscreen is typically rated for over 1 million actuations.

6. Q: Is it possible to mount the panel vertically or horizontally?
   A: The وحدة is designed for standard panel mounting, typically in landscape orientation.

7. Q: Can the panel be powered directly from a 24V DC source?
   A: Yes, it operates within an 18–30V DC supply range.

8. Q: What is the boot-up time after power-on?
   A: The boot-up time is usually less than 30 seconds, depending on the HMI program size.

9. Q: Are firmware updates available for the CP435T?
   A: Yes, firmware updates are provided through ABB’s support site and can be applied via USB or Ethernet.

10. Q: Is remote access possible with this panel?
    A: Basic remote monitoring may be possible depending on the network configuration and project setup, though advanced remote features are better supported in CP600 series models.
