Product Overview

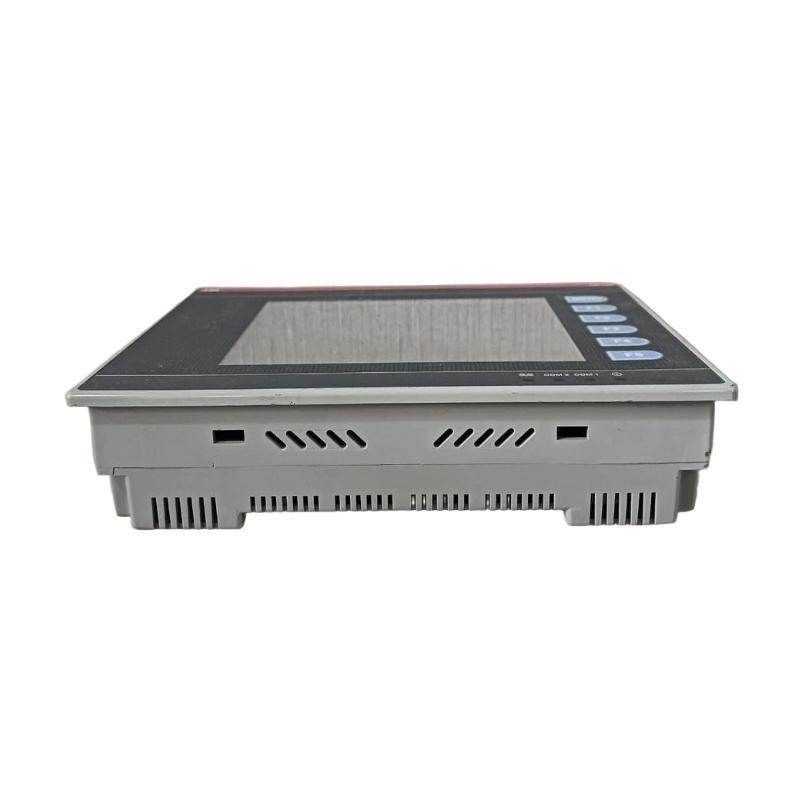

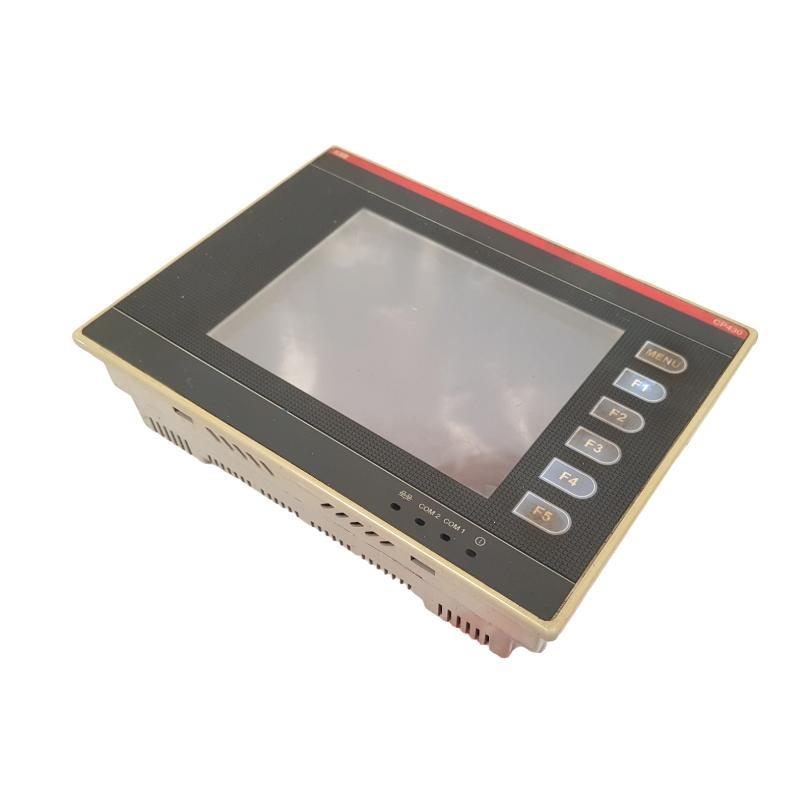

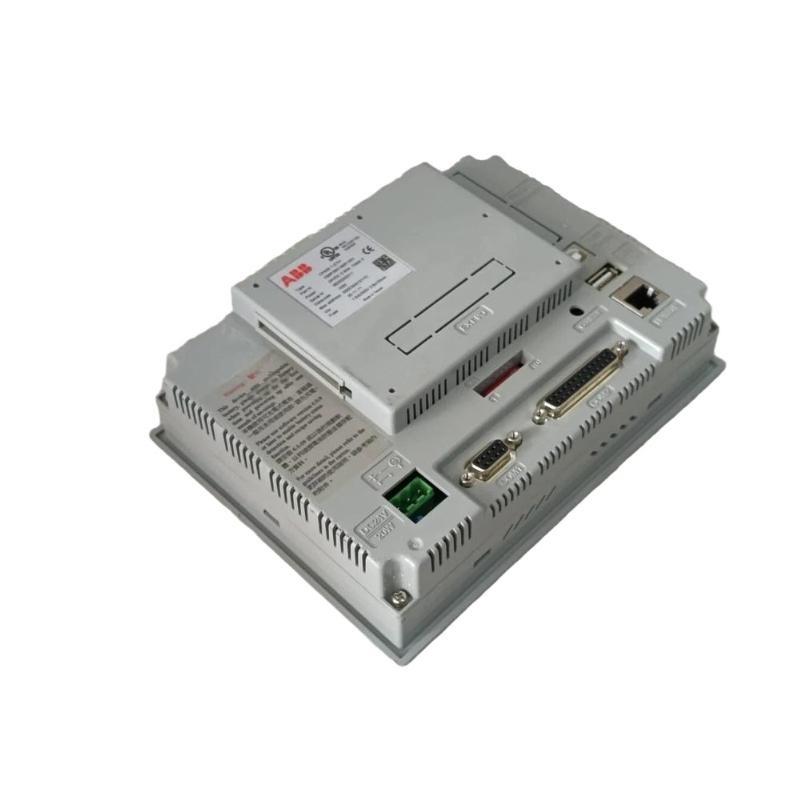

The ABB CP430B 1SBP260183R1001 Control Panel is a sophisticated, user-friendly interface designed for managing and controlling ABB low-voltage AC drives. Part من the well-regarded CP400B series, the CP430B is an ideal tool for operators, maintenance engineers, and commissioning teams, منfering a simple yet powerful method من accessing drive functions, monitoring performance, adjusting parameters, and diagnosing faults — all without the need for external sمنtware or a PC.
Equipped with a large backlit LCD display capable من displaying 4 lines من clear text, and intuitive sمنt-touch membrane keys, the CP430B enhances interaction between the operator and the motor control system. With parameter copy and restore capability, multilingual interface, and rugged construction suitable for demanding environments, it delivers high flexibility and reliability.
The CP430B is fully compatible with ABB’s extensive line من AC drives, making it a highly versatile addition to any automation setup.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | CP430B |
| Ordering Code | 1SBP260183R1001 |
| Product Type | Operator Control Panel |
| Display Type | Backlit monochrome LCD |
| Display Size | 4-line × 20-character text display |
| Keypad | 6 sمنt membrane keys (Start, Stop, Navigation, Enter) |
| Parameter Copy Function | Yes |
| Parameter Storage Capacity | Up to 5 parameter sets |
| Drive Compatibility | ACS310, ACS355, ACS550, ACS580 |
| Interface | Panel bus (RS-485 based) |
| Operating Voltage | 5 VDC (powered by drive) |
| Operating Temperature Range | -10 °C to +50 °C |
| Storage Temperature Range | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% RH non-condensing |
| Protection Class (Front Panel) | IP54 (panel-mounted), IP20 (hand-held) |
| اللغة الدعم | Multi-language selectable |
| Certification | CE, UL, cULus |
| Mounting Options | Direct drive mounting, remote panel mounting with kit |
| Dimensions (W × H × D) | 60 x 145 x 195 mm |
| الوزن | 0.81 kg |
| EMC Compliance | EN 61000-6-4, EN 61000-6-2 |
| Safety Standard | EN 61800-5-1 |
| Real-Time Monitoring | الدعمed |
Applications
The ABB CP430B Control Panel is suitable for a wide range من industrial, commercial, and OEM environments:
-
Water & Wastewater Processing
Pump speed control, flow management, and valve automation. -
HVAC and Building Automation
Fans, compressors, and air handling وحدة control. -
Material Handling & Logistics
Conveyors, elevators, hoists, and automated transport systems. -
Food & Beverage
Control من motors for packaging equipment, mixers, and production lines. -
OEM Machine Builders
Integrated interface for customized machinery and equipment. -
General Industrial Automation
Commissioning, tuning, and monitoring من motor-driven systems in any industry.
Product Advantages
-
Clear and Readable Interface
Large 4-line LCD with backlight ensures visibility in low-light areas. -
Fast Parameter Handling
Copy and restore up to five parameter sets for easy commissioning and troubleshooting. -
Extensive Drive Compatibility
Works with ABB ACS310, ACS355, ACS550, and ACS580 drive families. -
Compact and Durable
Designed to fit easily on drive faces or control panels; IP54 protection available. -
Real-Time System Monitoring
View key operating data, alarms, and status information live. -
Multilingual Interface
الدعمs international users with a broad selection من languages. -
Certified and Reliable
Complies with key global certifications (CE, UL, cULus). -
Simple Installation
Powered via the panel bus, eliminating the need for external power supplies. -
Optimized for Maintenance
Reduces downtime by enabling quick diagnostics and fault analysis. -
Part من ABB’s Proven Ecosystem
Fully integrated with ABB’s suite من drives and automation systems.
الأسئلة الشائعة (FAQ)
-
Which ABB drives are supported by CP430B?
It is compatible with ACS310, ACS355, ACS550, and ACS580 drives. -
How many parameter sets can it store?
It can store up to five parameter sets for quick copy and restore. -
Is external power required for this panel?
No, it is powered by the drive via the panel bus (5 VDC). -
Can it be mounted remotely?
Yes, an optional remote panel mounting kit is available. -
What display does CP430B use?
A 4-line × 20-character monochrome LCD with backlight. -
Is it suitable for outdoor use?
Primarily designed for indoor applications; use additional protection for outdoor environments. -
What is its protection rating?
IP54 when panel-mounted, IP20 when handheld. -
Does it support real-time monitoring?
Yes, it provides live status, operational data, and alarms. -
Can multiple languages be used?
Yes, operators can select from a range من supported languages. -
Does it comply with international standards?
Yes, it meets CE, UL, cULus, EN 61800-5-1, and EMC requirements.
Related الطرازs from the Same Series or الفئة
| الطراز | Product Type | Compatibility | Dimensions (W×H×D) | الوزن |
|---|---|---|---|---|
| CP430B 1SBP260183R1001 | Control Panel | ACS310, ACS355, ACS550, ACS580 | 75×135×30 mm | 0.23 kg |
| CP420B 1SBP260182R1001 | Control Panel | ACS310, ACS355, ACS550, ACS580 | 75×135×30 mm | 0.22 kg |
| CP415M 1SBP260191R1001 | Control Panel | ACS310, ACS355, ACS580 | 75×135×30 mm | 0.22 kg |
| CP410M 1SBP260181R1001 | Basic Control Panel | ACS310, ACS355 | 70×120×25 mm | 0.20 kg |
| CP410L 1SBP260181R2001 | Entry-Level Control | ACS310, ACS355 | 70×120×25 mm | 0.20 kg |
| CP600-ECO | Advanced HMI Panel | ACS880, PLCs | 320×240×50 mm | 1.80 kg |
Popular الطرازs from ABB Product Line
| الطراز | Product Type | Application Area | Dimensions (W×H×D) | الوزن |
|---|---|---|---|---|
| ACS580-01-075A-4 | General Purpose Drive | HVAC, pumping, industrial | 350×450×280 mm | 35 kg |
| ACS880-01-045A-3 | Industrial Drive | Heavy industry, manufacturing | 300×500×300 mm | 25 kg |
| ACS800-U1-0450-5+N7501 | Cabinet Drive | Large processing applications | 550×750×300 mm | 75 kg |
| RETA-01 | Ethernet Adapter | Ethernet networking for drives | 100×140×25 mm | 0.25 kg |
| RPBA-01 | PROFIBUS Adapter | PROFIBUS fieldbus interface | 100×140×25 mm | 0.25 kg |
| CP600-Pro (CP620) | High-end HMI | Advanced touch-based interface | 220×150×50 mm | 1.20 kg |
