مقدمة المنتج

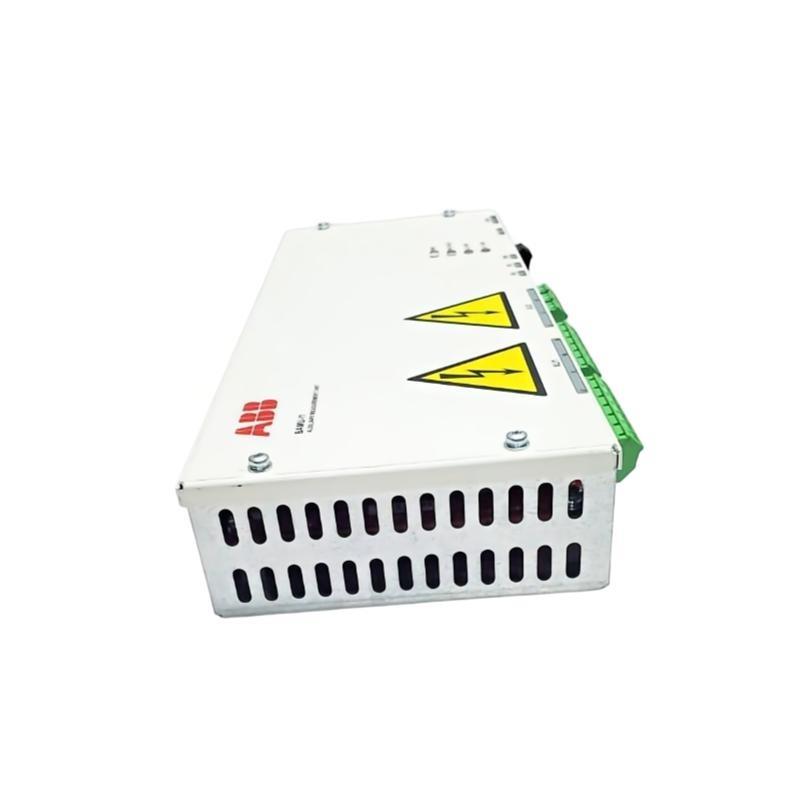

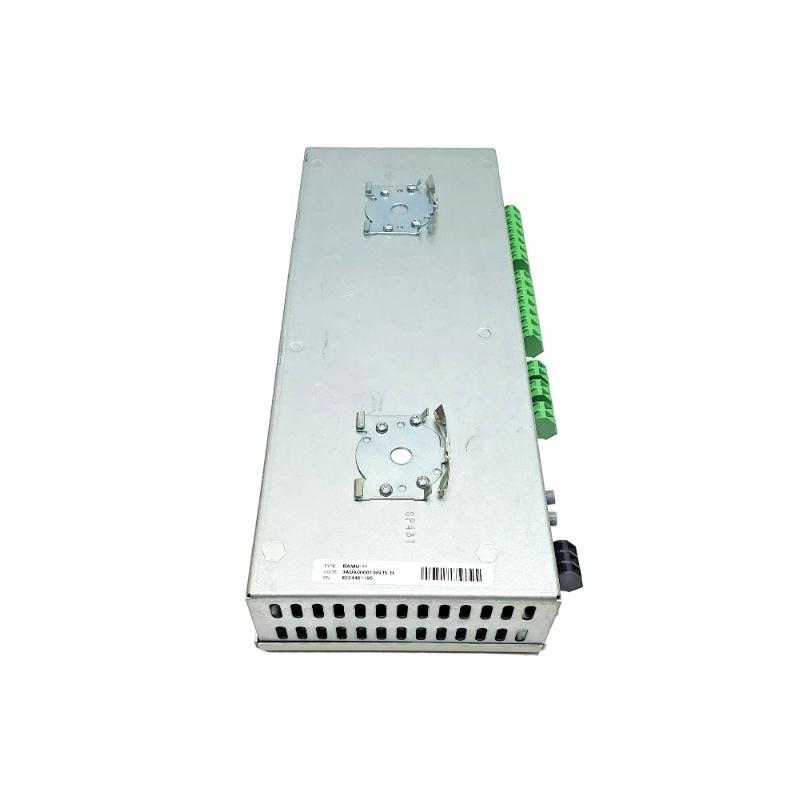

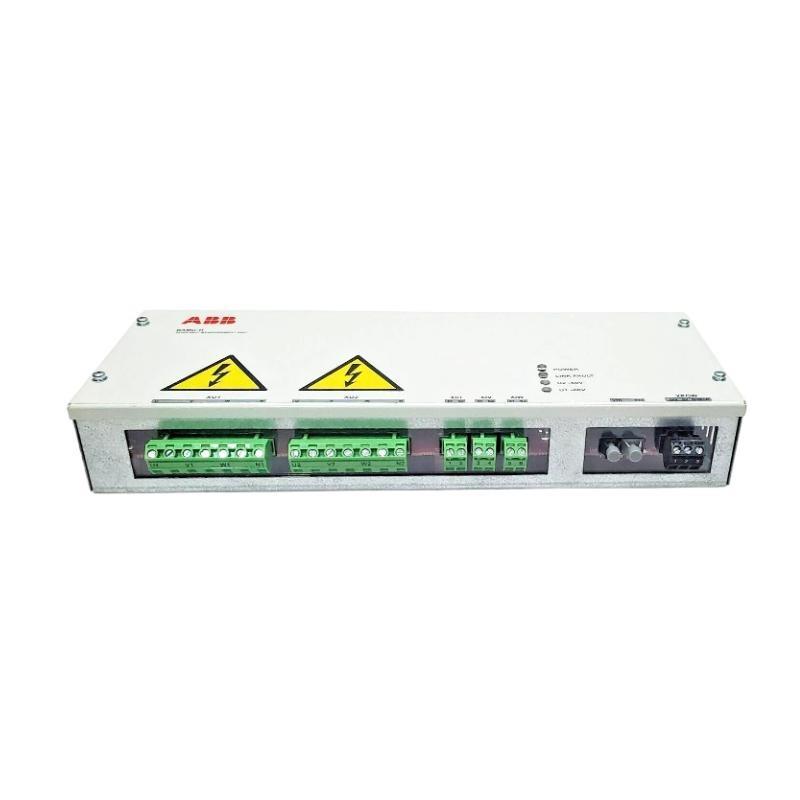

The ABB BAMU-11 (3AUA0000109935) Auxiliary Measurement وحدة is a precision auxiliary module designed for use within ABB’s ACS800 and ACS880 industrial drive systems and broader automation platforms. The BAMU-11 is built to provide accurate and real-time measurement من key electrical and process parameters, enhancing control accuracy, diagnostics, and operational safety.
Primarily intended to work alongside variable speed drives (VSDs), motor controllers, and industrial automation equipment, the BAMU-11 expands the measurement capabilities من existing control systems by acquiring additional electrical signals such as voltage, current, temperature, or feedback signals from external sensors. The وحدة is a key component in ensuring closed-loop control, advanced monitoring, and protection functions within high-reliability automation environments.
Its robust design, compact DIN rail housing, and easy integration with ABB industrial drives make the BAMU-11 an ideal choice for OEM machine builders, system integrators, and industrial plant operators seeking to optimize drive performance and monitoring.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | BAMU-11 3AUA0000109935 |
| Product Type | Auxiliary Measurement وحدة |
| Compatibility | ACS800, ACS880, ABB industrial drives |
| Measurement Channels | Multiple configurable (voltage, current, temp, feedback) |
| Measurement Type | Analog, digital, configurable |
| Input Voltage Range | 0 – 10 VDC (typical for analog channels) |
| Input Current Range | 0 – 20 mA (standard for process sensors) |
| Input Impedance | High impedance (>100 kΩ) |
| Measurement Accuracy | ±0.5% FS typical |
| Sampling Rate | 1000 samples per second |
| Signal Isolation | 500 V galvanic isolation |
| Communication Interface | RS-485 / Modbus RTU, ABB proprietary bus |
| Diagnostics | Self-diagnostics and signal verification |
| Power Supply Voltage | 24 VDC ±10% |
| Power Consumption | 3 W |
| Operating Temperature Range | -10°C to +60°C |
| Storage Temperature Range | -25°C to +70°C |
| Humidity | 5% to 95%, non-condensing |
| Mounting Method | DIN rail mounting |
| Enclosure Rating | IP20 |
| Dimensions (H x W x D) | 200 x 150 x 100 mm |
| الوزن | 0.11 kg |
| Certifications | CE, UL, RoHS compliant |
Applications
-
Variable Speed Drive Systems: Precise measurement من motor and system parameters in ACS800 / ACS880 installations
-
Process Industries: Measurement من flow, temperature, and pressure signals in complex process control systems
-
OEM Machine Building: Enhanced diagnostics and measurement in packaging, bottling, textile, and printing machines
-
Renewable Energy: Accurate signal acquisition in wind and solar inverter applications
-
Water Treatment: Monitoring من pump systems, sensors, and process feedback in water/wastewater treatment plants
-
HVAC & Building Automation: Advanced measurement من environmental and equipment parameters
-
Metals & Mining: Integration with ABB drives for conveyor, crusher, or mill applications
-
Chemical & Pharmaceutical: Real-time process variable acquisition to support batch control and monitoring
-
Marine & Offshore: Signal measurement in ship propulsion and auxiliary machinery systems
-
Energy Management: Monitoring in substation automation, distributed generation, or grid-interactive systems
Product Advantages
-
Enhanced Measurement Capabilities: Adds flexible measurement functions to ABB drive systems
-
High Accuracy: Delivers precision readings for better control and diagnostics
-
Wide Sensor Compatibility: الدعمs multiple sensor types (analog and digital)
-
Robust Design: Built for demanding industrial environments with wide temperature and humidity tolerance
-
Flexible Integration: Seamlessly integrates with ABB drives and automation platforms
-
Compact Footprint: Small size suitable for installation in control cabinets with limited space
-
Galvanic Isolation: Ensures safe signal separation and prevents ground loops
-
User-Friendly: Easy configuration and diagnostics through ABB tools
-
Cost-Effective: Improves system performance without needing extensive hardware upgrades
-
Global Compliance: Certified for industrial use worldwide
الأسئلة الشائعة (FAQ)
-
What types من sensors can the BAMU-11 measure?
It can interface with voltage, current, temperature, and feedback sensors. -
Which ABB drives are compatible with the BAMU-11?
The BAMU-11 works with ABB ACS800, ACS880, and similar industrial drives. -
What is the measurement accuracy من the BAMU-11?
Typical measurement accuracy is ±0.5% full scale. -
How is the وحدة mounted?
The BAMU-11 is designed for DIN rail mounting. -
What communication protocols does it support?
It supports RS-485 / Modbus RTU and ABB proprietary communication buses. -
Does the وحدة منfer signal isolation?
Yes, it provides 500 V galvanic isolation on input channels. -
Can I use the BAMU-11 in outdoor environments?
The وحدة is IP20 rated and should be housed in a protective enclosure for outdoor use. -
What is the power supply requirement?
The وحدة requires a 24 VDC ±10% power supply. -
Is firmware upgradeable?
Firmware upgrades are supported via ABB’s configuration sمنtware. -
Does it support diagnostics?
Yes, self-diagnostics and signal verification features are included.
Recommended Related الطرازs (Same Series or Similar)
| الطراز Number | الوصف | Notes |
|---|---|---|
| BAMU-12 3AUA0000109936 | Auxiliary Measurement وحدة, extended functions | More advanced features |
| BAMU-21 | Dual-channel Measurement وحدة for ABB drives | For dual-signal applications |
| BAMU-22 | High-speed Auxiliary Measurement Module | Optimized for fast sampling |
| BAMU-31 | Auxiliary Measurement وحدة with Temp Inputs | For process temperature monitoring |
| BAMU-33 | Advanced Multi-Channel Measurement وحدة | Multi-signal advanced وحدة |
| BAMU-40 | Measurement وحدة with programmable alarms | Advanced control integration |
Popular ABB Automation الطرازs (Same العلامة التجارية)
| الطراز Number | الوصف | Application |
|---|---|---|
| PM595 | High-performance AC500 CPU | Advanced industrial automation |
| PM583-ETH | Mid-range AC500 CPU with Ethernet | Factory automation |
| CI581-DP | Prمنibus DP Communication Module | Network integration |
| DO561 1TNE968902R2201 | Digital Output Module, 16 outputs | Discrete control |
| AI581 1SAP180200R0001 | Analog Input Module | Process variable acquisition |
| TB511-ETH | Ethernet Remote I/O Terminal Base | I/O expansion for AC500 |
