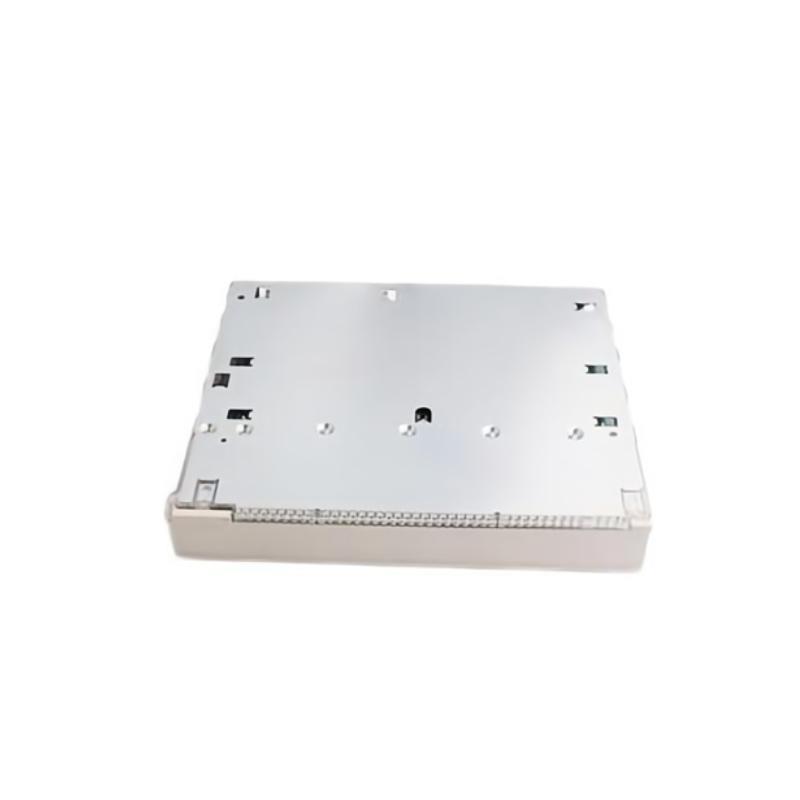

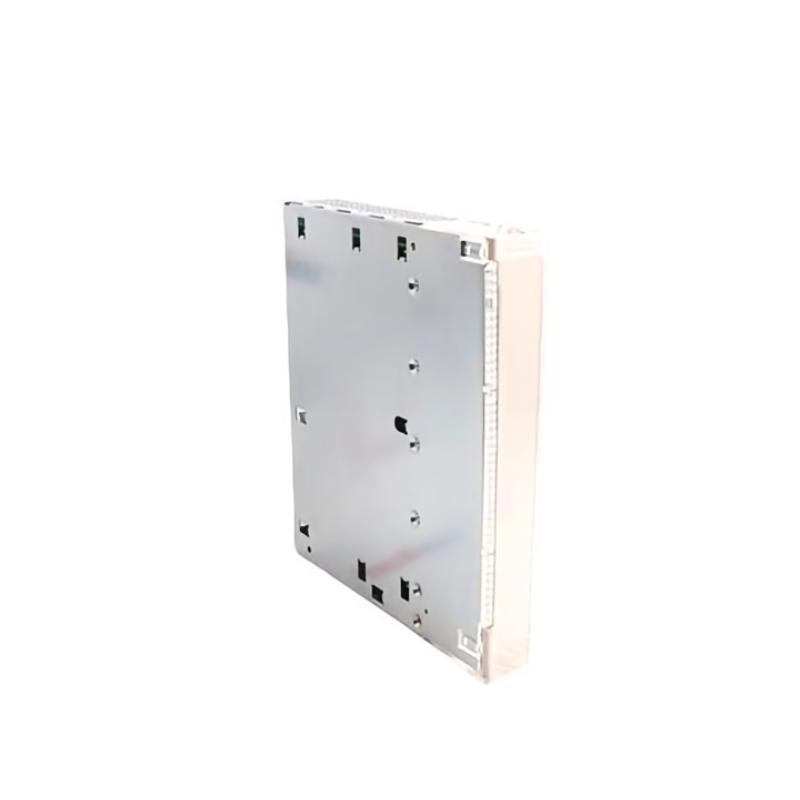

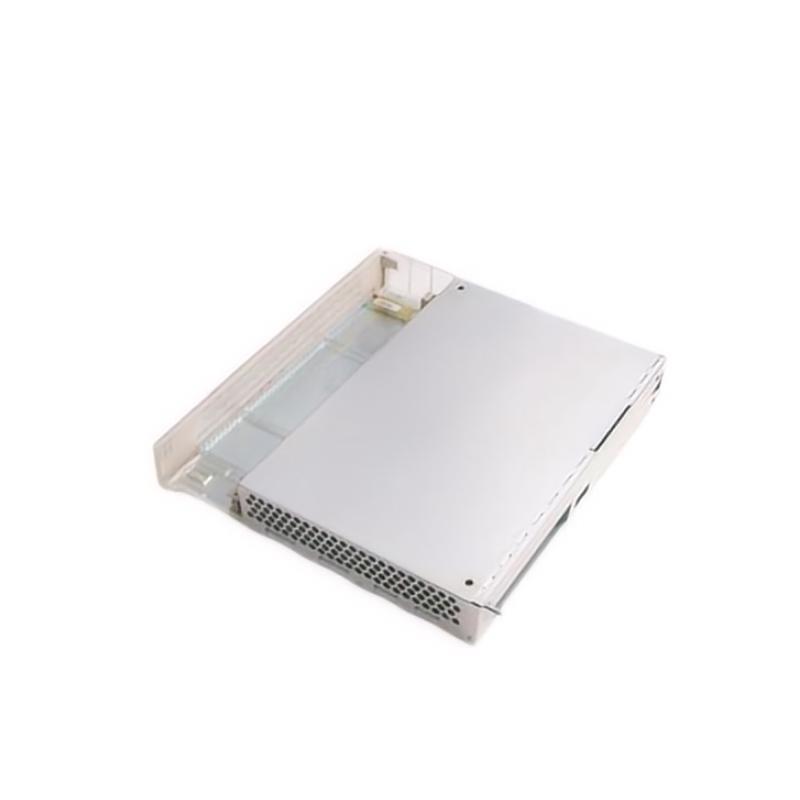

ABB AO610 3BHT300008R1 Analog Output Module

مقدمة المنتج

The ABB AO610 3BHT300008R1 Analog Output Module is an industrial-grade analog output module engineered for use with the ABB Advant Controller 410 Series and the Advant Master DCS system. It is designed to deliver precise analog current signals to field actuators and control devices in a wide range من industrial automation systems.

The AO610 provides 8 independent analog current outputs, each capable من delivering a 4 to 20 mA output signal. These outputs are electrically isolated from the system and from each other, ensuring signal integrity and system protection. The module is known for its robust signal quality, long-term stability, and high-resolution conversion, making it highly reliable for continuous process control environments such as refineries, power plants, chemical factories, and water treatment facilities.

Its rugged construction, DIN rail mounting design, and compatibility with ABB’s legacy control platforms make it a long-standing choice in industries requiring proven, long-lifecycle automation components.

مواصفات المنتج

Applications

The ABB AO610 module is widely used in mission-critical automation environments that demand continuous, precise control and real-time performance. Its most common application areas include:

• Power Generation Plants: Used for regulating turbine systems, fuel valve actuators, and excitation systems.

• Oil and Gas Facilities: Deployed in wellhead control systems, pipeline regulation, and refining processes.

• Chemical and Petrochemical Plants: Controls flow valves, reactors, and dosing systems.

• Water and Wastewater Treatment: Operates dosing pumps, valve actuators, and flow control systems.

• Pulp and Paper Industry: Used in machine control loops, bleaching processes, and paper drying systems.

• Metallurgical Processes: Regulates furnaces, rolling mills, and cooling water circuits.

Product Advantages

• High Precision Analog Output: Ensures stable and accurate signal generation for closed-loop control.

• Full Channel Isolation: Eliminates cross-talk and protects both the module and connected equipment.

• Diagnostic Intelligence: Built-in diagnostics aid in predictive maintenance and system health monitoring.

• Industrial Reliability: Proven performance in demanding environments with high EMC compliance.

• Seamless System Integration: Fully compatible with legacy ABB DCS systems and interfaces via MasterBus 300.

• Long Product Lifecycle الدعم: Widely used in legacy installations, منfering continued availability and support.

• Secure Mounting & Configuration: Compatible with standard ABB backplanes or rack systems.

الأسئلة الشائعة (FAQ)

1. What type من signal does the AO610 output?
   It outputs analog current signals in the 4 to 20 mA range.

2. How many analog outputs are available on the AO610?
   The module provides 8 isolated analog current outputs.

3. Is this module compatible with modern ABB systems like 800xA?
   It is primarily designed for legacy systems such as Advant Controller 410 and Advant Master DCS, but integration via gateways is possible.

4. Does it have channel isolation?
   Yes, each channel is electrically isolated from the others and from the system.

5. Can it detect open or short circuits on outputs?
   Yes, it has diagnostic functions to detect wiring faults like open or short circuits.

6. What is the maximum load resistance supported per channel?
   Each output can drive up to 600 ohms من load resistance.

7. Does the module support hot swapping?
   It depends on the configuration من the backplane and system redundancy, but typically not recommended unless system allows.

8. Is the AO610 still in production?
   While still supported and widely used, it is considered part من ABB’s mature product line, with long-term lifecycle service.

9. What is the response time per channel?
   Each channel updates in less than 1 millisecond.

10. Is there sمنtware configuration required for the AO610?
    Configuration is managed via the DCS programming environment, typically through ABB’s engineering tools.
