مقدمة المنتج

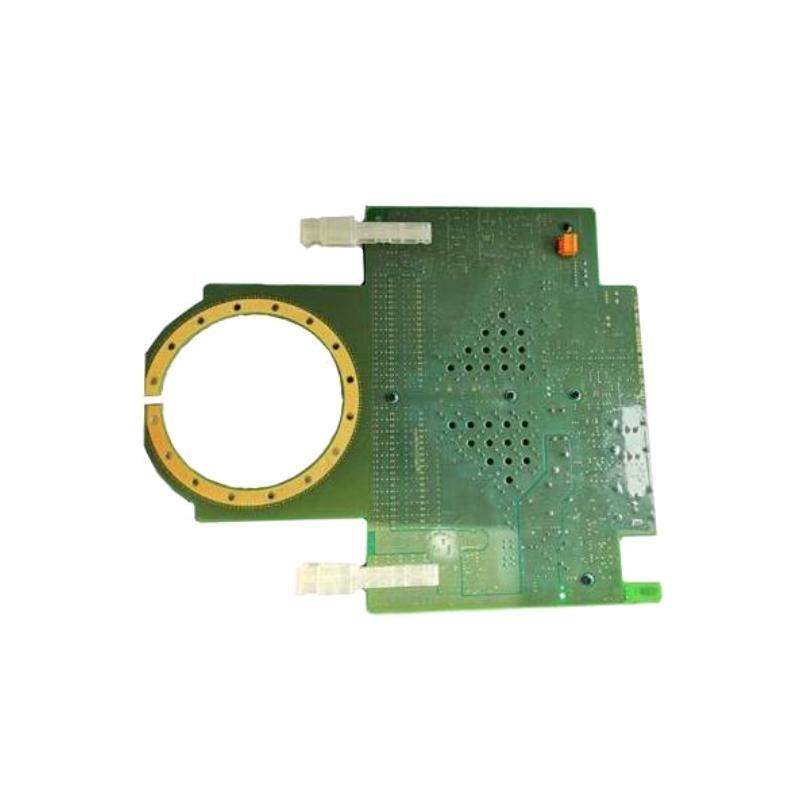

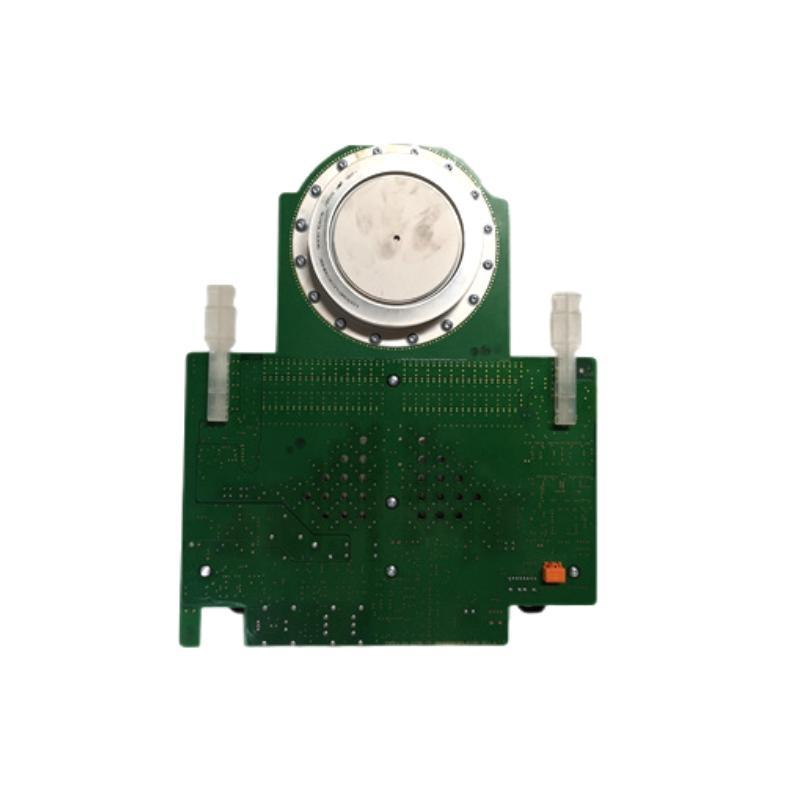

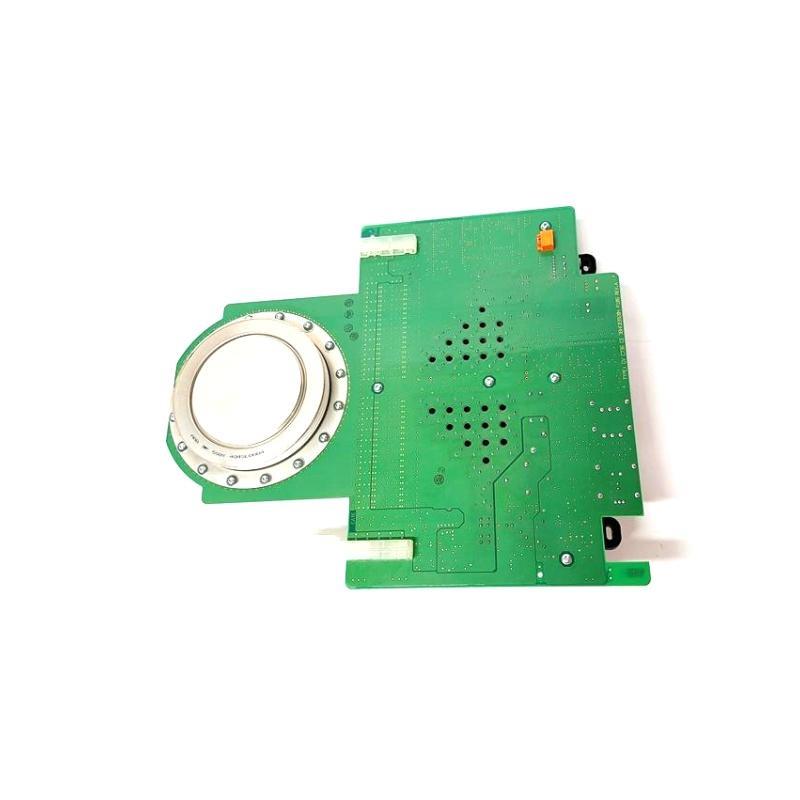

The ABB 5SXE12-0184 GVC736CE101 3BHE039203R0101 Control Board is a high-performance, modular control board designed for use in ABB’s industrial automation systems. It is part من the S800 I/O family and provides crucial control functionality for process automation applications. This control board plays an essential role in monitoring and managing a variety من industrial processes, منfering enhanced system performance and flexibility.
مواصفات المنتج – ABB 5SXE12-0184 Control Board
| Parameter | Specification |
|---|---|
| الشركة المصنعة | ABB |
| الطراز Number | 5SXE12-0184 GVC736CE101 3BHE039203R0101 |
| Product Type | Control Board |
| Module Type | Digital/Analog I/O Board |
| I/O Channels | 32 Digital I/O, 8 Analog Inputs, 8 Analog Outputs |
| Input Voltage Range | 24 VDC (Nominal) |
| Output Voltage Range | 24 VDC (Nominal) |
| Power Consumption | 5 W (Typical), 8 W (Max) |
| Communication Protocol | Modbus RTU, Ethernet/IP |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 0% to 95% non-condensing |
| Dimensions (W x H x D) | 240 x 150 x 40 mm |
| الوزن | 0.75 kg |
| Mounting Type | DIN Rail Mount |
| Environmental Protection | IP20 |
Applications من ABB 5SXE12-0184 Control Board
The ABB 5SXE12-0184 control board is designed for use in a wide variety من industries requiring reliable, high-performance control solutions. Common applications include:
-
Process Automation: Used in controlling industrial processes such as manufacturing, material handling, and assembly lines.
-
Power Generation: Controls power management systems, regulating outputs for turbines, generators, and electrical grids.
-
Oil & Gas: Monitoring and controlling drilling operations, pumps, and pipelines.
-
Water Treatment: Ensures water purification processes are properly regulated by controlling pumps and filtration وحدةs.
-
Automated Manufacturing: Provides control over machines, robotics, and other automated devices on production floors.
-
HVAC Systems: Used for controlling temperature, humidity, and air quality in commercial and industrial HVAC systems.
Advantages من ABB 5SXE12-0184 Control Board
-
High Flexibility: The control board منfers a wide range من I/O options, including digital and analog inputs/outputs, which makes it suitable for numerous automation applications.
-
Robust Communication Protocols: It supports both Modbus RTU and Ethernet/IP, ensuring easy integration into existing industrial networks.
-
Energy-Efficient: With a typical power consumption من just 5 W, the control board is highly energy-efficient and suitable for long-term operation in various industrial environments.
-
Compact and Easy Installation: The board is designed to fit into standard DIN rails, making installation in control panels simple and efficient.
-
Wide Operating Temperature Range: The board operates in a temperature range from -20°C to +60°C, making it reliable even in challenging industrial environments.
-
Modular Design: The modular design من the board allows it to be easily integrated into larger automation systems and expanded with additional I/O modules as needed.
-
Durability: The product is built with high-quality materials and designed for long-lasting durability, making it ideal for critical industrial processes.
الأسئلة الشائعة (FAQ) – ABB 5SXE12-0184 Control Board
-
What is the primary function من the ABB 5SXE12-0184 Control Board?
The primary function is to provide control and monitoring for industrial automation processes, منfering both digital and analog I/O capabilities. -
What types من I/O are supported by this control board?
The board supports 32 digital I/O channels and 8 analog inputs and outputs. -
What is the power consumption من the 5SXE12-0184 board?
The typical power consumption is 5 W, and the maximum is 8 W. -
What communication protocols does the 5SXE12-0184 support?
It supports Modbus RTU and Ethernet/IP protocols for communication with other system components. -
Can the 5SXE12-0184 control board be used in harsh environments?
Yes, it operates in environments with temperatures ranging from -20°C to +60°C and can withstand humidity levels from 0% to 95% (non-condensing). -
What is the mounting method for this control board?
The board is designed to be mounted on a DIN rail, which is common in industrial control panels. -
Is this control board compatible with other ABB automation products?
Yes, it is fully compatible with other ABB products, particularly in the S800 I/O family. -
What is the weight من the ABB 5SXE12-0184 board?
The board weighs 0.75 kg. -
What is the voltage input range for the control board?
The input voltage range is 24 VDC (nominal). -
What type من protection does the control board منfer?
The board has an IP20 protection rating, making it suitable for indoor installations.
Recommended Related الطرازs (Same Series or Functionality)
| الطراز Number | Product Name | الوصف |
|---|---|---|
| 5SXE12-0185 | Digital I/O Control Board | Provides digital input/output capabilities for process automation systems |
| 5SXE12-0183 | Analog Input/Output Control Board | Designed for analog I/O control in industrial applications |
| 5SXE12-0187 | Mixed I/O Control Board | الدعمs both analog and digital signals for versatile control applications |
| 5SXE12-0190 | High-Speed Digital I/O Control Board | For high-speed data processing and control in automation systems |
| 5SXE12-0191 | Expansion Control Module | Expands the I/O capabilities من the base control system |
| 5SXE12-0192 | Temperature Control I/O Module | Specifically designed for temperature control in industrial processes |
Popular ABB الطرازs (Same العلامة التجارية)
| الطراز Number | Product Name | الوصف |
|---|---|---|
| 5SXE12-0170 | Basic Control I/O Module | A versatile module for basic control and monitoring systems in industrial automation |
| 5SXE12-0200 | Advanced Network Controller | A high-performance controller for large-scale industrial networks |
| 5SXE12-0250 | Industrial Process Controller | Specialized for controlling complex industrial processes with high precision |
| 5SXE12-0300 | Modular Process Control System | Provides modular configuration for expanding control networks |
| 5SXE12-0350 | I/O Expansion Module | Expands the I/O capabilities من the central control system |
| 5SXE12-0400 | High-Security Control Module | Designed for use in high-security environments, منfering advanced safety features |
