Product Overview

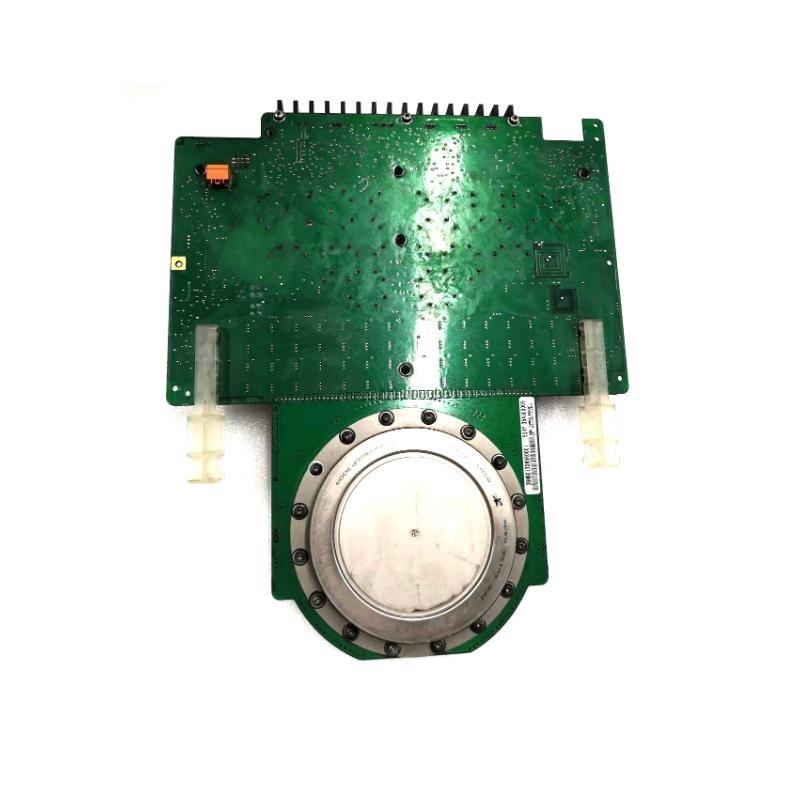

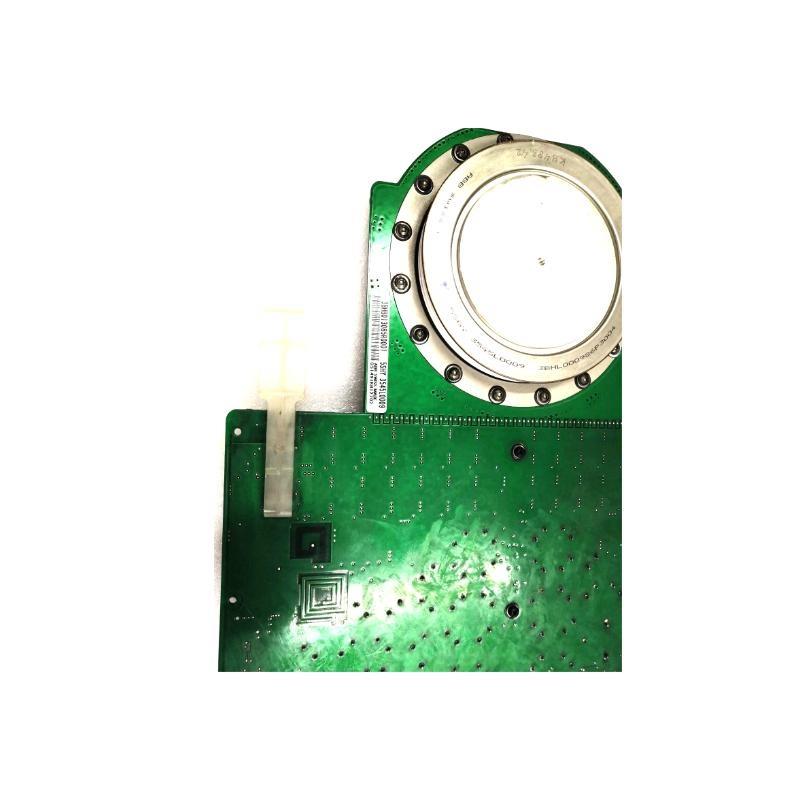

The ABB 5SHY3545L0009 IGCT Module is a high-power, high-voltage semiconductor device designed for industrial power electronics. It integrates fast switching capability with high efficiency, making it suitable for modern AC/DC converters, inverters, and rectifiers. Its robust construction ensures reliable operation in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | IGCT (Integrated Gate Commutated Thyristor) |
| Rated Voltage | 4.5 kV AC |
| Rated Current | 125 A |
| Switching Frequency | Up to 1.5 kHz |
| Thermal Resistance (Junction to Case) | 0.40 °C/W |
| Gate Trigger Voltage | 15 V |
| Isolation Voltage | 3,000 V AC |
| On-الولاية Voltage Drop | 2.5 V |
| Off-الولاية Leakage Current | 10 mA |
| Operating Temperature Range | -40°C to +125°C |
| Dimensions | 150 × 100 × 40 mm |
| الوزن | 1.5 kg |
Applications
-
High-voltage AC/DC converters
-
Industrial inverters and drives
-
Phase-controlled rectifiers
-
Power exciter control systems
-
Renewable energy systems
Advantages
-
High efficiency with low conduction and switching losses
-
Fast and reliable switching for industrial systems
-
Robust design suitable for harsh environments
-
Wide operating temperature range
-
Flexible cooling options (air or water cooling)
FAQ
-
What is the maximum surge current this IGCT module can withstand?
It can handle peak repetitive surge currents in the kiloampere range depending on cooling. -
Which cooling methods are recommended?
Forced air or water cooling to maintain junction temperature. -
How does gate trigger voltage affect module performance?
Proper gate voltage ensures fast turn-on and reduced switching losses. -
Is the module suitable for both AC and DC applications?
Yes, it can be used in AC rectifiers and DC link circuits with snubber circuits. -
What is the expected operational lifetime?
Exceeding 100,000 hours when used within rated conditions. -
How critical is thermal resistance for module performance?
Low thermal resistance reduces junction stress and improves reliability. -
What protection measures are recommended?
Overvoltage protection, gate snubbers, and thermal monitoring. -
Are there specific mounting requirements?
Secure mounting with proper insulation and orientation for efficient heat dissipation. -
Can this module operate in high-frequency switching environments?
Yes, designed for switching frequencies up to 1.5 kHz. -
What is the typical on-state voltage drop during operation?
Approximately 2.5 V under rated conditions.
Related Series الطرازs
| الطراز | Type | Rated Voltage | Rated Current | Dimensions | الوزن |
|---|---|---|---|---|---|
| 5SHY3540L0008 | IGCT | 4.5 kV AC | 100 A | 150 × 100 × 40 mm | 1.4 kg |
| 5SHY3550L0010 | IGCT | 5 kV AC | 150 A | 160 × 105 × 45 mm | 1.6 kg |
| 5SHY3545L0011 | IGCT | 4.5 kV AC | 125 A | 150 × 100 × 40 mm | 1.5 kg |
| 5SHY3540L0012 | IGCT | 4 kV AC | 120 A | 145 × 95 × 40 mm | 1.4 kg |
| 5SHY3560L0009 | IGCT | 6 kV AC | 130 A | 155 × 105 × 45 mm | 1.7 kg |
| 5SHY3545L0013 | IGCT | 4.5 kV AC | 140 A | 150 × 100 × 40 mm | 1.5 kg |
Popular ABB الطرازs
| الطراز | Type | Rated Voltage | Rated Current | Dimensions | الوزن |
|---|---|---|---|---|---|
| 5SHY3530L0005 | IGCT | 3.5 kV AC | 100 A | 140 × 90 × 35 mm | 1.3 kg |
| 5SHY3565L0010 | IGCT | 6.5 kV AC | 150 A | 160 × 105 × 45 mm | 1.8 kg |
| 5SHY3545L0014 | IGCT | 4.5 kV AC | 125 A | 150 × 100 × 40 mm | 1.5 kg |
| 5SHY3555L0009 | IGCT | 5.5 kV AC | 130 A | 155 × 105 × 45 mm | 1.6 kg |
| 5SHY3525L0008 | IGCT | 3 kV AC | 90 A | 135 × 85 × 35 mm | 1.2 kg |
| 5SHY3570L0011 | IGCT | 7 kV AC | 150 A | 165 × 110 × 50 mm | 1.9 kg |
