Product Overview

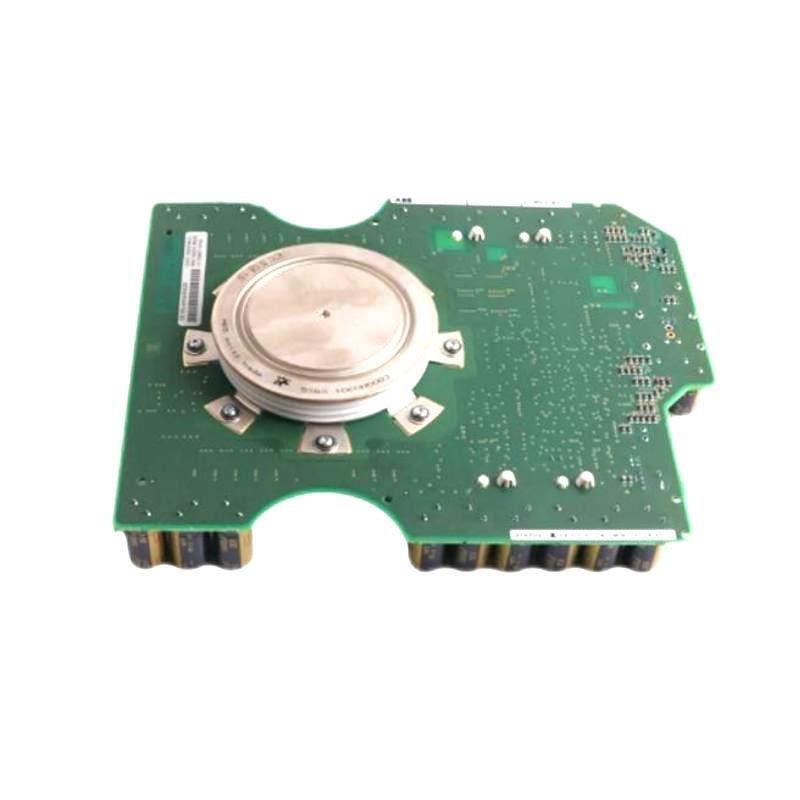

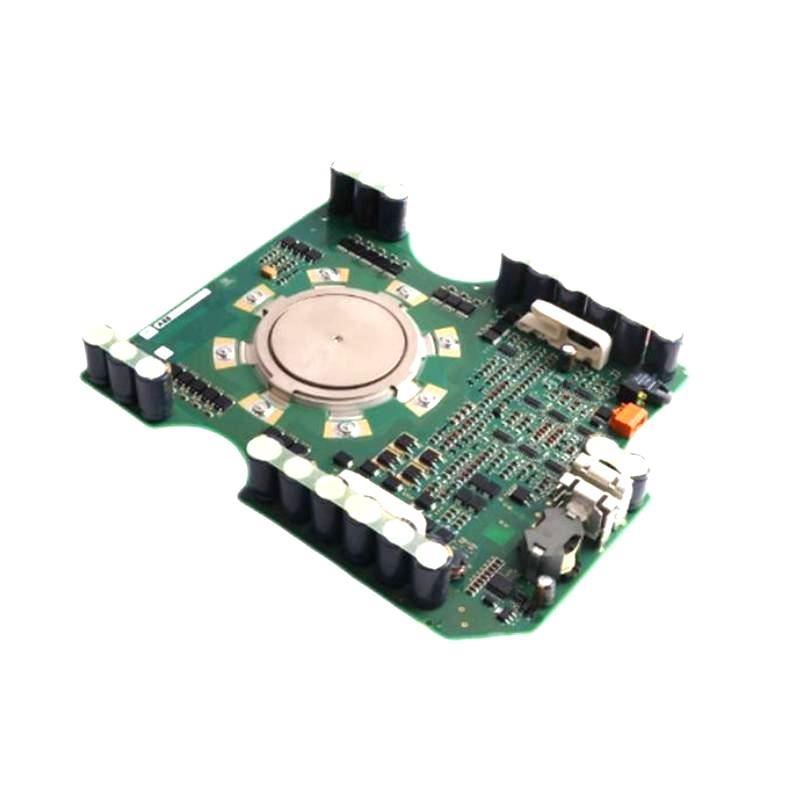

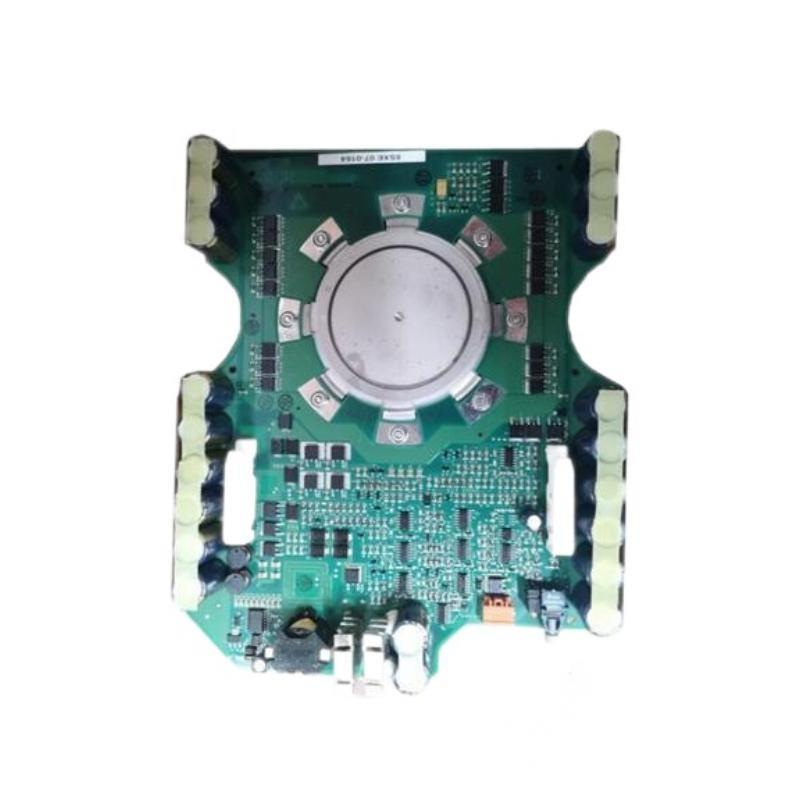

The ABB 5SHX1060H0003 3BHB020538R0001 is a high-performance Integrated Gate-Commutated Thyristor (IGCT) module designed for reliable and efficient high-power switching applications. It combines fast switching capabilities with high current handling, making it ideal for industrial power converters and drives.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | IGCT Module |
| الطراز Number | 5SHX1060H0003 |
| ABB Order Code | 3BHB020538R0001 |
| Maximum Rated Voltage | 4500 V |
| Maximum Rated Current | 4000 A |
| Surge Current | 8000 A |
| Gate Trigger Current | ≤ 6 A |
| Mounting Type | Screw Terminal |
| Insulation | Fully Isolated Baseplate |
| Cooling Method | Forced Air / Liquid Cooling |
| Operating Temperature | -40°C to +125°C |
| Dimensions (L×W×H) | 190 × 140 × 38 mm |
| الوزن | 1.2 kg |
Applications
-
Medium-voltage motor drives
-
Traction converters
-
Static VAR compensators
-
Industrial UPS systems
-
Power grid converters
-
High-power inverters for renewable energy
Product Advantages
-
High Current & Voltage Tolerance: Withstands extreme power demands.
-
Fast Switching Speed: Reduces losses and improves efficiency.
-
Rugged Design: Operates reliably under harsh conditions.
-
Integrated Protection: Built-in snubber and clamping functions.
-
Thermal Efficiency: الدعمs effective cooling under continuous operation.
الأسئلة الشائعة (FAQ)
Q1: What type من component is the ABB 5SHX1060H0003?
A1: It is an IGCT (Integrated Gate-Commutated Thyristor) module for high-power switching.
Q2: What is the maximum voltage and current supported?
A2: It supports up to 4500 V and 4000 A.
Q3: Is this module suitable for motor drive applications?
A3: Yes, it is ideal for medium-voltage motor drive systems.
Q4: What is the recommended cooling method?
A4: Forced air or liquid cooling is recommended for thermal management.
Q5: What are the dimensions من this IGCT module?
A5: The size is 190 × 140 × 38 mm.
Q6: Can it be used in high-frequency switching?
A6: Yes, it منfers fast switching capabilities suitable for high-frequency operation.
Q7: What is the weight من the module?
A7: The weight is 1.2 kg.
Q8: What insulation does the module provide?
A8: It features a fully insulated baseplate for safety and reliability.
Q9: Is it compatible with liquid-cooled heatsinks?
A9: Yes, it is compatible with liquid-cooled systems.
Q10: Does it come with integrated protection?
A10: Yes, it includes built-in snubber circuits and protection features.
Related IGCT الطرازs
| الطراز Number | Voltage | Current | Dimensions (mm) | الوزن |
|---|---|---|---|---|
| 5SHX1060H0002 | 4500 V | 3000 A | 190 x 140 x 38 | 1.1 kg |
| 5SHY3545L0004 | 4500 V | 3500 A | 190 x 140 x 38 | 1.2 kg |
| 5SHX1060L0001 | 4500 V | 3600 A | 190 x 140 x 38 | 1.2 kg |
| 5SHX1060K0001 | 4000 V | 3000 A | 185 x 135 x 35 | 1.1 kg |
| 5SHY3545L0001 | 4500 V | 2800 A | 190 x 140 x 38 | 1.1 kg |
| 5SHY4045L0002 | 4500 V | 4000 A | 190 x 140 x 38 | 1.2 kg |
Popular ABB Power Modules
| الطراز Number | Product Type | Voltage | Current | Dimensions (mm) | الوزن |
|---|---|---|---|---|---|
| 5SNA1500E330300 | IGBT Module | 3300 V | 1500 A | 190 x 140 x 38 | 1.3 kg |
| 5SYA2045 | Gate وحدة | N/A | N/A | 90 x 60 x 20 | 0.4 kg |
| 5SNA1200E170100 | IGBT Module | 1700 V | 1200 A | 140 x 100 x 35 | 1.0 kg |
| 5SDD0540F0001 | Diode/Thyristor | 4500 V | 540 A | 80 x 80 x 30 | 0.8 kg |
| 5SHY4055L0001 | IGCT Module | 4500 V | 4500 A | 190 x 140 x 38 | 1.3 kg |
| 5SME06F4500 | GTO Module | 4500 V | 600 A | 85 x 85 x 30 | 0.9 kg |
